High Current Power Distribution Module

  • Updated


Description

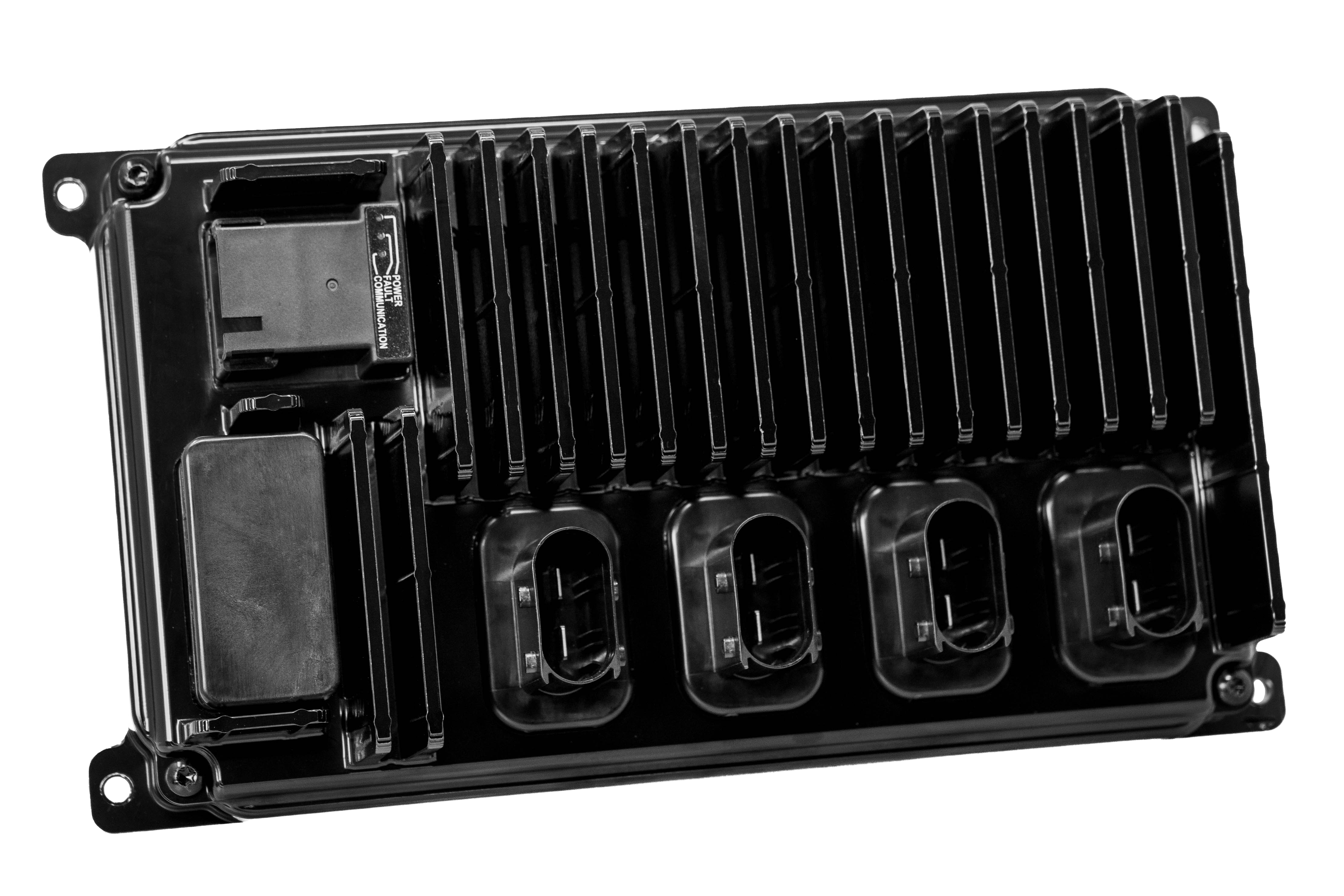

The High Current Power Distribution Module (HCPDM) is a  intelligent I/O expansion module designed for 12Vdc systems, configured and controlled over a J1939 CAN data link. The PDM features eight high current outputs, two low current outputs, and 6 configurable analog inputs.

An external device such as a Powerview Display, uControl Hydraulic controller, or any customer supplied controller will send configuration messages to the HCPDM over the CAN data link to configure the desired behavior of the analog inputs and high current outputs. Handshaking messages are returned to confirm the configuration status. This configuration data is then retained in non-volatile memory indefinitely until it is overwritten when it receives another configuration command. This means the HCPDM only needs to be configured one time.

During operation, an external device will continually send messages over the CAN data link to control the state of each of the outputs. Fault conditions are monitored by the HCPDM and in the event of a fault, the affected outputs or the entire unit will be shut off and the fault conditions reported.

The HCPDM will continually broadcast analog input status, fault status, output current status, and a host of other information pertaining to the state of the module.

Communication with the HCPDM is seamlessly integrated into our Powervision displays using a built in app. When developing using a different controller, it is recommended to review the quick reference material in this article and the condensed message list in section 7 of the reference manual. The details for each message can be found throughout the manual. The message list is almost identical to the IX3212 PDM with added messages for new features and current limit values.

Literature and Drawing Downloads

Connector Pinout Quick Reference

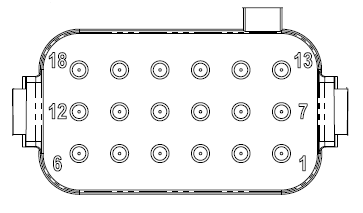

Connector E

Pinout looking into the HCPDM

Mating Connector: Deutsch TE-934457151

Pin Function Signal
E-1 Input 1 Configuration dependent
E-2 Input 4 Configuration dependent
E-3 Unused
E-4 Unused
E-5 High side driver 1 Out Vbatt @100mA
E-6 High side driver 2 Out Vbatt @ 100mA
E-7 Input 2 Configuration dependent
E-8 Input 5 Configuration dependent
E-9 Ignition/Wake Input Active High  -Vbatt or Open
E-10 Address bit 2 Input Gnd or Open
E-11 Sensor V out 5 V @ 400 mA
E-12 Sensor return Gnd
E-13 Input 3 Configuration dependent
E-14 Input 6 Configuration dependent
E-15 Address bit 1 Input Gnd or Open
E-16 Address bit 0 Input Gnd or Open
E-17 CAN high NA
E-18 CAN low NA

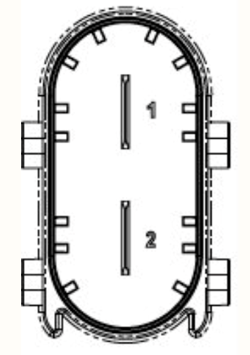

Connector A to D

Pinout looking into the HCPDM case

Mating Connector all 4 locations: DTE-1355328-1 AMP 9.5 series

Pin Function Signal
A-1 Digital Output 1 PWM 40Amp Max @500Hz
A-2 Digital Output 2 PWM 40Amp Max @500Hz
B-1 Digital Output 3 PWM 40Amp Max @500Hz
B-2 Digital Output 4 PWM 40Amp Max @500Hz
C-1 Digital Output 5 PWM 40Amp Max @500Hz
C-2 Digital Output 6 PWM 40Amp Max @500Hz
D-1 Digital Output 7 PWM 40Amp Max @500Hz
D-2 Digital Output 8 PWM 40Amp Max @500Hz



CAN Communication Quick Reference

The HCPDM uses one PGN for all communications to and from an external device. Messages are multiplexed using byte one of the data payload as the message ID. Destination and Source Addresses are used in the message ID to further discriminate the messages. The external device will always use address 17 as its source address. The source address of the PDM is configurable through input wiring.

Baud Rate: 250K

Protocol: J1939

PGN: 61184 decimal (0xEF00 hex)

Source Address: Default of 40 (0x28hex), set using SA digital inputs, range 40 - 47

Communicating Device Address: 17 decimal, 0x11hex

Message ID from HCPDM (Tx):0x14EF1128 -  HCPDM SA 0x28 is configuration dependent

Message ID to the HCPDM (Rx):0x14EF2811 - HCPDM SA 0x28 is configuration dependent



HCPDM Source Address Settings

Address Bit 2 (pin E10) Address Bit 1 (pin E15) Address Bit 0 (pin E16) SA Decimal SA Hex
open open open 40 0x28
open open gnd 41 0x29
open gnd open 42 0x2A
open gnd gnd 43 0x2B
gnd open open 44 0x2C
gnd open gnd 45 0x2D
gnd gnd open 46 0x2E
gnd gnd gnd 47 0x2F



Message Identifier - Data is multiplexed using Byte 1 to identify the message (message identifier) and its contents. Data Byte 2 is sometimes used in addition to identify the input/output channel number being configured.

See Section 7 in the Reference Manual for a condensed list of all byte definitions.



Message Identifier Definitions

Byte 1 - Identifier Byte 2 Description
0 Ch Number 1 - 8 Configure Motor Model/Output Function
6 NA Configure Output Channels 1 to 4
7 NA Configure Output Channels 5 to 8
8 NA Configure Analog Input Channels 1 to 6
10 (0x0A) NA Configure Miscellaneous
11 (0x0B) Ch Number 1 - 8 Configure Position Control
4 NA Command Outputs 1 to 4
5 NA Command Outputs 5 to 8
9 NA Command High Side Outputs
128 (0x80) NA Feedback - Analog Inputs 1 to 3
129 (0x81) NA Feedback - Analog Inputs 4 - 6
130 (0x82) NA Feedback - Diagnostics Channels 1 to 8
131 (0x83) NA Feedback - Software Version, Power Status,
132 (0x84) NA Feedback - Outputs 1-4 Current/Position
133 (0x85) NA Feedback - Outputs 5 - 8 Current/Position
134 (0x86) Ch Number 1 - 8 Handshake - Motor Model/Output Function
135 (0x87) NA Handshake - Output Configuration Channels 1 to 4
136 (0x88) NA Handshake - Output Configuration Channels 5 to 8



Media

No media or tutorials are available at this time.

Accessories

No accessories are available at this time.

Specifications

  •
    • Electrical
      • Operating Voltage: Nominal 12VDC (6 – 18VDC)
      • Operating Current:
        • Idle current: <170mA
        • Sleep Current: <2mA
        • Integrated Reverse Polarity Protection
      • Inputs:
        • (6) Six configurable (Digital High Side, Digital Low Side, Resistive, 0 – 5V, 0 – 32V, 4 – 20mA)
      • Outputs:
        • (8) Eight Digital High Current (40A each/200A total, configurable as Binary High Side, PWM, or up to 4 H-Bridge pairs)
        • (2) Two 100mA for high impedance outputs (LEDs, PLC inputs, & standard automotive relay coils). These two outputs are capable of remaining active during engine crank cycle
      • Short Circuit Overload: Integrated & Fully Protected
      • Sensor Supply: 5V @ 400mA output
    • Communication
      • CAN Interface: CAN 2.0B Active, Default protocol SAE J1939, 250 kbit/s Baud rate
      • Sleep PIN: Control of sleep and wake function; Wake on CAN option
      • LED Indicators:
        • (1) Green – Power Status
        • (1) Red – Fault Indication
        • (1) Blue – Communications
    • Hardware
      • Connectors:
        • Inputs, CAN, sensor supply, HS outputs:
          • One 18 Way Deutsch DT18- SA-K004
        • Outputs
          • Four 2 Way AMP MCP 9.5
        • Power Supply
          • 2 Female threaded lugs with Cross-Head Hex bolts (1 – M8, 1-M12)
    • Environmental
      • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
      • Storage Temperature: -40°F to +221°F (-40°C to +105°C)
      • Sealing: IP67/IP69K
      • Vibration: 5.82 grms, 8 hours/axis
      • Shock: +/- 50g 6ms
      • Housing:Internally potted, E-coated cast aluminum with integral mounting feet
      • EMI/EMC:
        • CISPR11, CISPR25, EN60945, EN61000-4-2, EN61326-1, SAE J1113-2, SAE J1113-4, SAE J1113-11, SAE J1113- 12, SAE J1113-13, SAE J1113-21, SAE J1113-22, SAE J1113-26, SAE J1455
      • Certifications: CE mark
      • Dimensions:
        • Width: 7.56 in. (192 mm)
        • Height: 2.71 in. (69 mm)
        • Length: 13.74 in. (349 mm)
      • Mass: 3.6 kg (8.1 lb)
