SenderCAN® PLUS Series

  • Updated

SenderCAN® PLUS is a user configurable I/O Module Part Number 78700683 and is designed to convert up to four switch, resistive, voltage, or current inputs into J1939 parameters that are broadcast on a CAN network which can then be used by any J1939 compliant device. Two outputs are available that can be controlled by a J1939 CAN message or driven by internally generated alarms. A separate dedicated input is available to convert a frequency signal into Engine Speed or Vehicle Speed.

A free simple to use Configuration Tool allows the developer to select all the input/output settings for their custom application. A complete J1939 library is included with the ability to create custom J1939 messages.

Two other models are available from the factory with the following functionality, FuelCAN PLUS P/N 78700694 (replaces E2502000A) and MeCAN PLUS 78700695 (replaces E2501300B) . Firmware and operations manual for these is available below and can be loaded on the standard SenderCAN® PLUS module. These have the same functionality as their predecessors. Once this firmware is loaded, the module can no longer be configured with the configuration tool. To revert back to a configurable version simply load the standard 78000683 firmware.



Quick Start Guide

  • Programming Hardware Required -  E-Com USB/CAN Adapter, WaveShare USB/CAN Adapter, or Programming kit p/n 78700691.
  • Review the analog input/output specifications to verify signal range and scaling meet the application requirements.

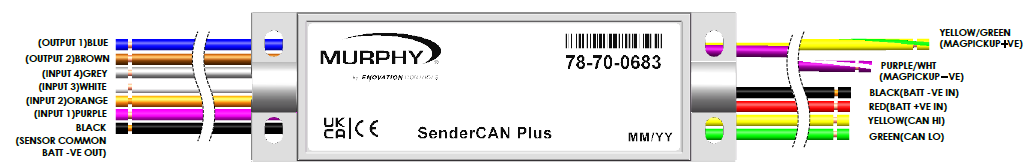

  • Review the specification drawing 78020135 for wiring connections.
  • Install the Configuration Tool
  • Install the E-Com cable driver

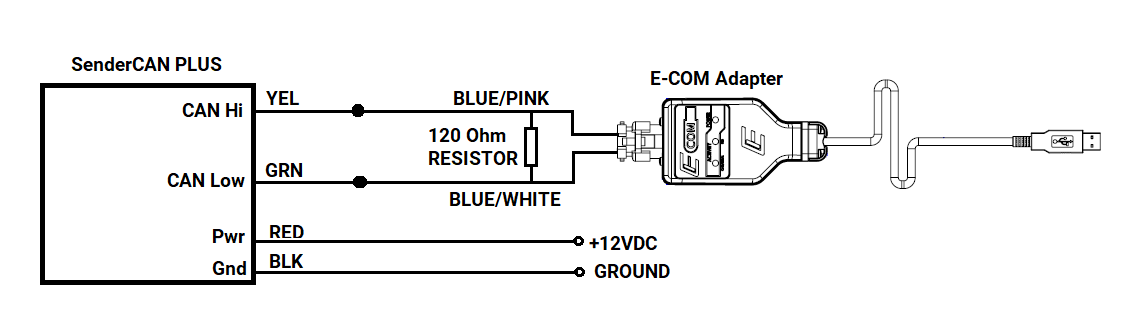

  • Connect the CAN Adapter to the CAN inputs and provide power to the module
  • Create the configuration - follow along with the training tutorial

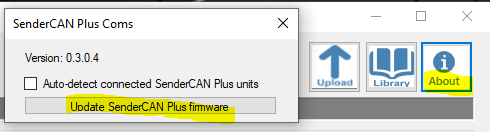

  • Program the SenderCAN® PLUS - see tutorials
  • Test the configuration in the application
  • Verify LED Lamp Codes

Drawings

Configuration Tool

Tutorials

Accessories

  • Programming Kit P/N 78700691
    • Power and CAN Harness with Term Resistor
    • E-Com Cable
    • 12V Power Supply

Firmware Files

Mounting Options

  • Mount directly inline in a harness using the slotted holes to zip tie to the main harness bundle.
  • Use M-4 hardware to surface mount to a panel. Avoid pinching wires, use stand offs if required. Reference specification drawing for hole location dimensions.

LED Lamp Codes

  • Normal Operating Mode - Slow 1 second Blink Rate
    • LED Off - No Power
    • LED Fast Blink - No CAN connection or CAN Bus Failure
    • LED Slow Blink - Connected to CAN Bus but no Analog Inputs
    • LED On Solid - CAN connected and operating properly
  • Error Code Mode - Fast Blink Rate followed by a pause
    • Number of LED Flashes  Error Description
      1 Memory checksum error
      2 System Setting error
      3 Input channel 1 error
      4 Input channel 2 error
      5 Input channel 3 error
      6 Input channel 4 error
      7 Frequency settings error
      8 Output 1 settings error
      9 Output 2 settings error
      10 Battery voltage settings error
      11 Machine hours settings error

Specifications

  • Power Supply:
    • Operating Voltage: 7-35 VDC
    • Nominal Current: 30-40 mA
    • Sleep Mode: Not Available
  • Analog Inputs :
    • 12 Bit A/D Converter, resolution of 4096 bits scaled across measurement range
    • 4 Software Configurable Inputs as Digital/Resistive/Voltage/Current
    • Resistance Input Mode: Range is 0 to 10K ohm,  In Resistive mode a 1K ohm internal pullup resistor to @5Vdc is enabled.
      Input Resistance Average Resolution
      0  to 1K ohm 1 ohm
      1K  to 5K ohms 5 ohms
      5K to 10K Ohms 15 Ohms
    • Voltage Input Mode: Range is -
        • Low Range 0 - 4.6Vdc, 1.2mV resolution
        • High Range 0 - 32Vdc, 8mV resolution
    • Current Input Mode: Range is  0 - 23mA, 0.006mA resolution. In 4-20mA mode a internal 200 Ohm Shunt Resistor is enabled,  .
    • Digital Switch Input Mode: Options are Open, Closed to B+, and Closed to B-
      • Switch Current - Closed to Battery Positive (3mA @ 12Vdc, 10mA @24Vdc)
      • Switch Current - Closed to Battery Negative (5mA @12Vdc, 5mA @24Vdc)
  • Frequency Input:
    • Optically Isolated, 3Vrms Min, 30Vrms max, 30Hz - 10Khz
    • Magnetic Pickup, Alternator, or Hall Effect sensor compatible
  • Digital Inputs:
    • See Analog Inputs - Digital switch option
  • Digital Outputs:
    • 2 Low-side FET's (switches the negative side of circuit), 250mA Max (Use flyback diode or snubber on inductive loads)
    • Configurable - controlled by CAN Message or internally generated Fault Status
    • PWM control available when CAN controlled, PWM Frequency Rate = 3.9Khz, 0 - 100% duty cycle.
  • CAN Communications:
    • 1 CAN Port - J1939 Protocol
    • Software Selectable 120 ohm termination resistor
    • Use built in library or create custom J1939 parameters
    • Device firmware and Configuration is programmed over CAN using E-Com cable
  • Physical/Environmental:
    • Enclosure Material: High impact ABS, epoxy filled
    • Dimensions: 4.21" Long x 1.30" Wide x 0.71 High"
    • Weight:
    • IP rating: IP65 case  exposed wire lead ends
    • Relative Humidity: N/A
    • Operating Temperature: -20° to +85°C (-4° to 185°F)
    • Storage Temperature: -40° to +85°C (-40° to 185°F)
    • Vibration: N/A
    • Shock: N/A
    • EMI/EMC: Complies with the following:
      • J1113-11 pulses 1c, 2a, 3a/b and 5a
      • EN 61000-4-2 ESD
      • EN 61000-4-3 Radiated disturbance
      • EN 61000-4-4 Fast transients
      • EN 61000-4-5 High energy transients
      • EN 61000-4-6 Conducted RF disturbance
      • CISPR 16-1-2, 4.3 Conducted Emissions
      • CISPR 16-2-3 Radiated Emissions

Compliance Certifications

  • Not available at this time.
