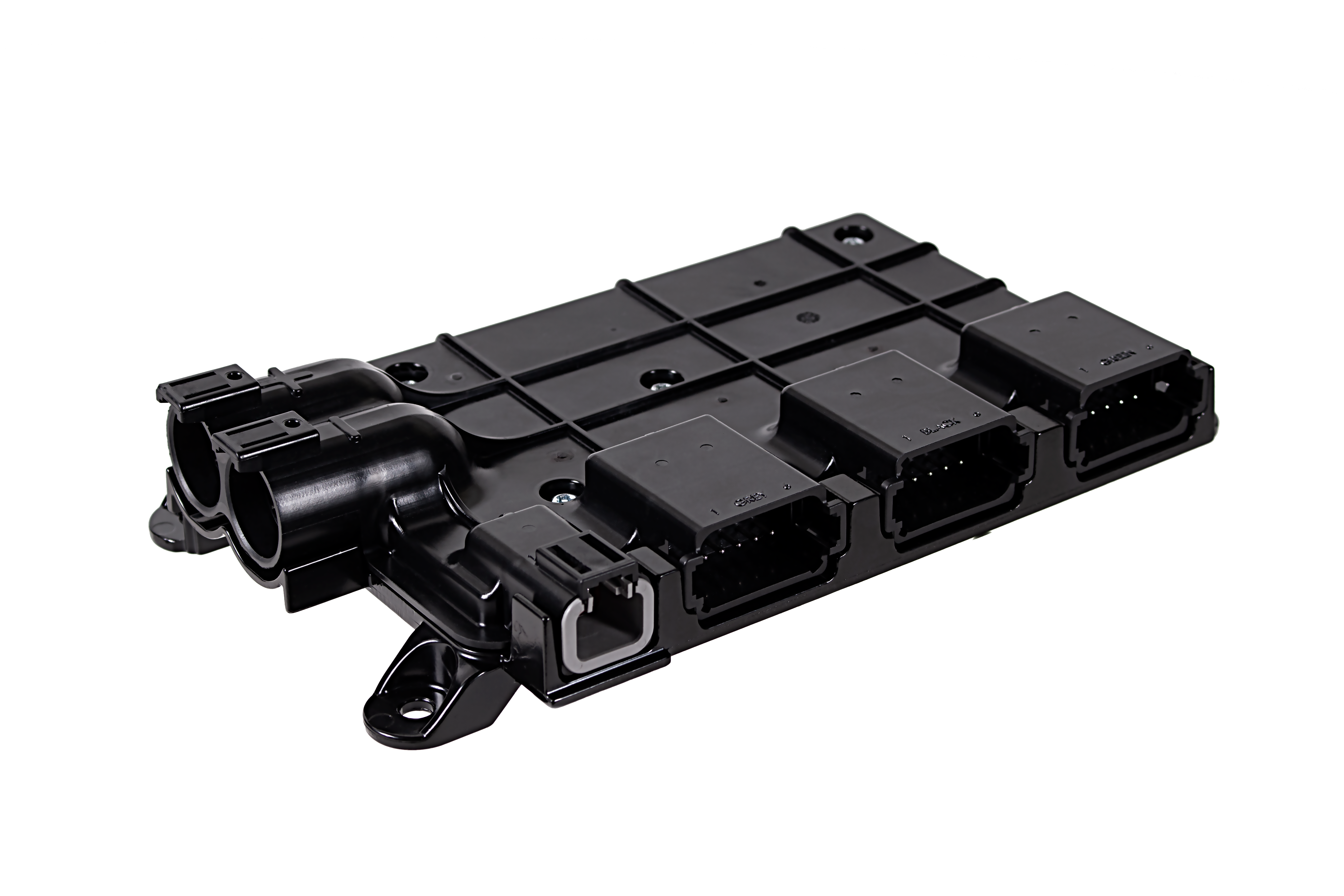

Intelligent Xpansion™ IX3212 PDM

• IX3212 PDM Message Generator
• CANCapture Workspace - IX3212 Message Decoder

• Solid Models
  • IX3212 PDM (STEP)
  • IX3212 PDM (IGS)
• Other Drawings
  • IX3212 PDM Dimensions

• CE Declaration of Conformity
  • IX3212 PDM CE Declaration of Conformity

• PV780 Example - How to convert resistive input from PDM Analog 1 & 2 to Fuel Level using lookup table script (Version 2.9.21075)
• PV380 Example - Using Freeform CAN to control the PDM, High Side and Hbridge modes

• Troubleshooting Guide
• IX3212 Resistance vs A/D Count on Analog Inputs 1 & 2
• IX3212 Message Quick Reference Guide
• Message Generator Utility
• High Side Output Configuration Message Example.csv
• Bridge Mode Output Configuration Message Example.csv
• Command High Side Outputs On/Off Message Example.csv
• Command Bridge Mode Outputs Fwd/Rev Message Example.csv

No media or tutorials are available at this time.

• Connector kits, EMEA regions (ys6475)

• Operating Voltage: 8-32V (IX3212-24) for 12V and 24V Systems
• Total Current: 70 A maximum continuous
• Dimensions: 245 mm (L) x 140 mm (W) x 50 mm (H)
• Mass: 0.9 kg (2.0 lb)
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Storage Temperature: -40°F to 275°F (-40°C to 135°C)
• Electrical and EMI/EMC:
  • 2004/108/EC and 2006/95/EC directives
  • IEC 61000-4-3, -4-6 and -4-8
  • EN 60945 / CISPR 11
  • EN 61326-1
• Shock: 30G, 3 cycles
• Vibration: 5-25g, 50-2,000Hz, 72 hrs per axis
• Sealing:
  • IP66 and 67
  • SAE J1455 4.5.3 (10,300 kPa @ 50°C and 100 mm away for 15 min)
• 12 Outputs:
  • (1-6) 15 A max per channel, 500 Hz PWM Rate
  • (7-16) 15 A max, 100 Hz PWM Rate
  • Channel overload set in 2.5 A increments
  • High-side, open-loop PWM and directional DC motor control (H-bridge) modes
  • Off-state leakage current <0.1 mA
• 20 Inputs:
  • 12 digital, tri-state, input impedance 7.7 kΩ
  • 6 analog, 0-5 V, input impedance 100 kΩ pull-down
  • 2 analog, resistive, input impedance 2.2 kΩ pull-up
  • 10 bit resolution on all analog inputs
• Sensor Supply: 5V @ 70 mA
• Communications: 1 CAN 2.0B, 250 kbps, J1939 proprietary messaging
• Matin)g Connectors:
  • Deutsch DTHD, DT, and DTP Series
  • J1, J2 – DTHD06-1-4S
  • J3 – DT06-12SA (Gray)
  • J4 – DT06-12SB (Black)
  • J5 – DT06-12SC (Green)
  • J6 – DTP06-2S
• Certifications: CE mark
