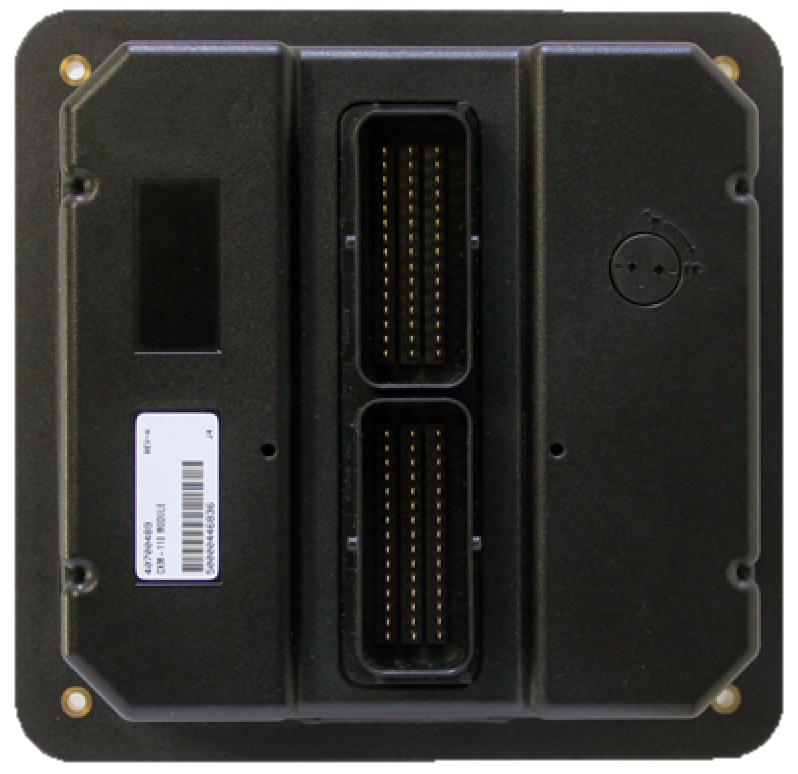

PowerCore® CXM-110

PowerVision Configuration Studio and Toolkit (Version 2.9+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels.

This I/O module is programmed with PowerVision Configuration Studio for Monochrome Displays.

Note: The full version of PowerVision Configuration Studio for Color and Monochrome Displays requires a valid Key ID to be used. If you do not have a Key ID, you may encounter limited features and saving options. To purchase a PowerVision Key ID, contact your Enovation Controls sales representative.

Downloads:

• PowerVision Configuration Studio 2.9 Downloads (Account Required)
  Downloads of PowerVision Configuration Studio and Toolkit are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

Downloads:

• PowerVision Configuration Studio 2.9 Downloads (Account Required)

• PowerVision Configuration Studio 2.8 Downloads (Account Required)
  Downloads of PowerVision for Controllers are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

• Solid Models
  • CXM-110 (STEP)
  • CXM-110 (IGS)

• CE Declaration of Conformity
  • CXM-110 EU Declaration of Conformity
• CSA Certificate of Compliance
  • CXM-110 CSA Certificate of Compliance

CXM-110 Example Configuration Article

No application information is available at this time.

No Media / Tutorials available at this time.

• Delphi 90 Position Connector Kit (40700496)
• 3' Delphi 90 Position Connector Whip Harness (40000554)
• Connector kits, EMEA regions (ys6475)

• Power Supply:
  • Operating Voltage: 8-32 VDC, reverse battery polarity & load dump protected
  • Current consumption: 18W Max without 2 2A High-sides, active, 146W Max with 2 2A High-sides active
• Inputs (15):
  • (6) Digital, configurable (active on High, Low, Open)
  • (8) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
  • (1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
•  Outputs (13):
  • (6) Relay, Form C (dry / volt-free), 10A
  • (2) Low-side FET (–DC), 1A
  • (2) High-side FET (+DC), 2A
  • (2) +5VDC, 200mA
  • (1) 0-5VDC High Impedance Analog
• Communications:
  • (2) CAN: J1939
  • (1) RS485: Modbus RTU
  • (1) USB: Programming
• Mating Connector:
  • Delphi, SICMA 90 Position
• Physical/Environmental:
  • Enclosure Material: Polycarbonate
  • Dimensions (WxHxD): 7.60 x 7.35 x 2.43 in. (193 x 189.7 x 61.6 mm)
  • Mass: 0.9kg (2.0lb)
  • IP rating: IP67 Complete Module
  • Operating Temperature: -40° to +85°C (-40° to 185°F)
  • Storage Temperature: -40° to +85°C (-40° to 185°F)
  • Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
  • Shock: ±50G, 3-axis
  • EMI/RFI: SAE J1113
  • Shipping Weight: 2lbs. 7.1 oz (1.11 kg.)
  • Shipping Dimensions: 9.5 x 9 x 5 in. (241 x 229 x 127 mm.)
