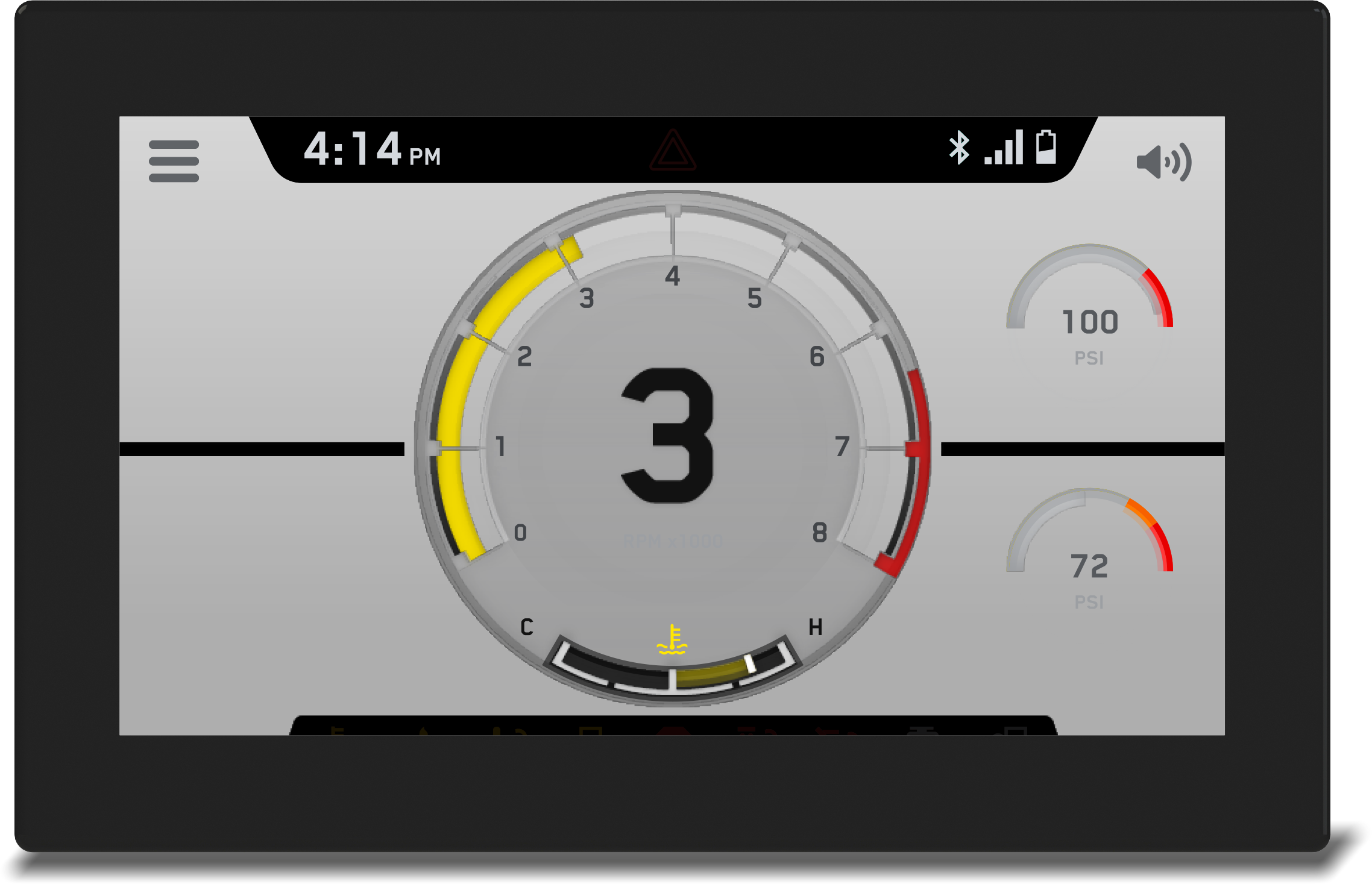

Openview™ S70

OpenPV™ Development Toolkit (Version 1.251.0+)

OpenPV™ is a PC-based software program suite for configuring and programming OpenView™ displays.

Enovation Controls is excited to offer OpenPV™ as a free download. A premium subscription to the OpenPV™ Projects feature is available for additional benefits including over-the-air updates, version management, and collaborative development. Subscriptions are managed directly in the OpenPV™ application.

Downloads:

• OpenPV™ Development Toolkit downloads. Having trouble downloading OpenPV™? Contact the Help Center.

• Solid Models
  • S70 Model (SLDPRT)
  • S70 Model (STEP)

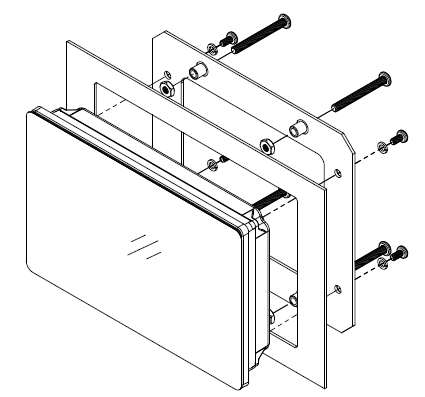

  • S70 Mounting Bracket (STEP - Same as PV500 Brkt)
•  Technical Drawing
  • S70 Technical Specifications Drawing

• CE Declaration of Conformity
  • S70 CE Declaration of Conformity

•  Access S70 demo directly in device U/I.

• I/O Application Notes

OpenPV™ Software Media

• Computing
  • Processor: A7 dual-core processor @ 650 MHz (32-bit)
  • Software: Linux
  • Storage: 4 GB flash memory
  • RAM: 512 MB DDR3-SDRAM
• Display
  • Display Area: 7-inchType: RGB IPS LCD w/ LED backlight 24bit color
  • Resolution: 1024 x 600
  • Contrast Ratio: 800:1
  • Brightness: 720 cd/m² (720 nits)
  • Touch Panel: Projected capacitive (PCAP) with glove touch
• Communication
  • CAN: (1) CAN
  • Serial: (1) USB 2.0,(1) RS-485
  • USB: (1) Type-C with Locking Connector
  • WiFi: 802.1 b/g
  • Bluetooth: BT v4.2
• Electrical
  • Operating Voltage: 6 – 36 VDC, reverse polarity protected
  • Power Consumption:

    Input Voltage	0% Backlight	100% Backlight
    12Vdc	170mA	470mA
    24Vdc	100mA	240mA

• Inputs
  • (2) Resistive 0–5 VDC
  • (2) Digital/Analog 0–36 VDC
• Outputs
  • (2) 500 mA switched low-side
• Environmental
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +70°C
  • Protection: IP65
  • Vibration: IEC 60068-2-64
  • Shock: IEC 60068-2-27
  • EMC/EMI: ISO 14982:2009, ISO 13766:2018
