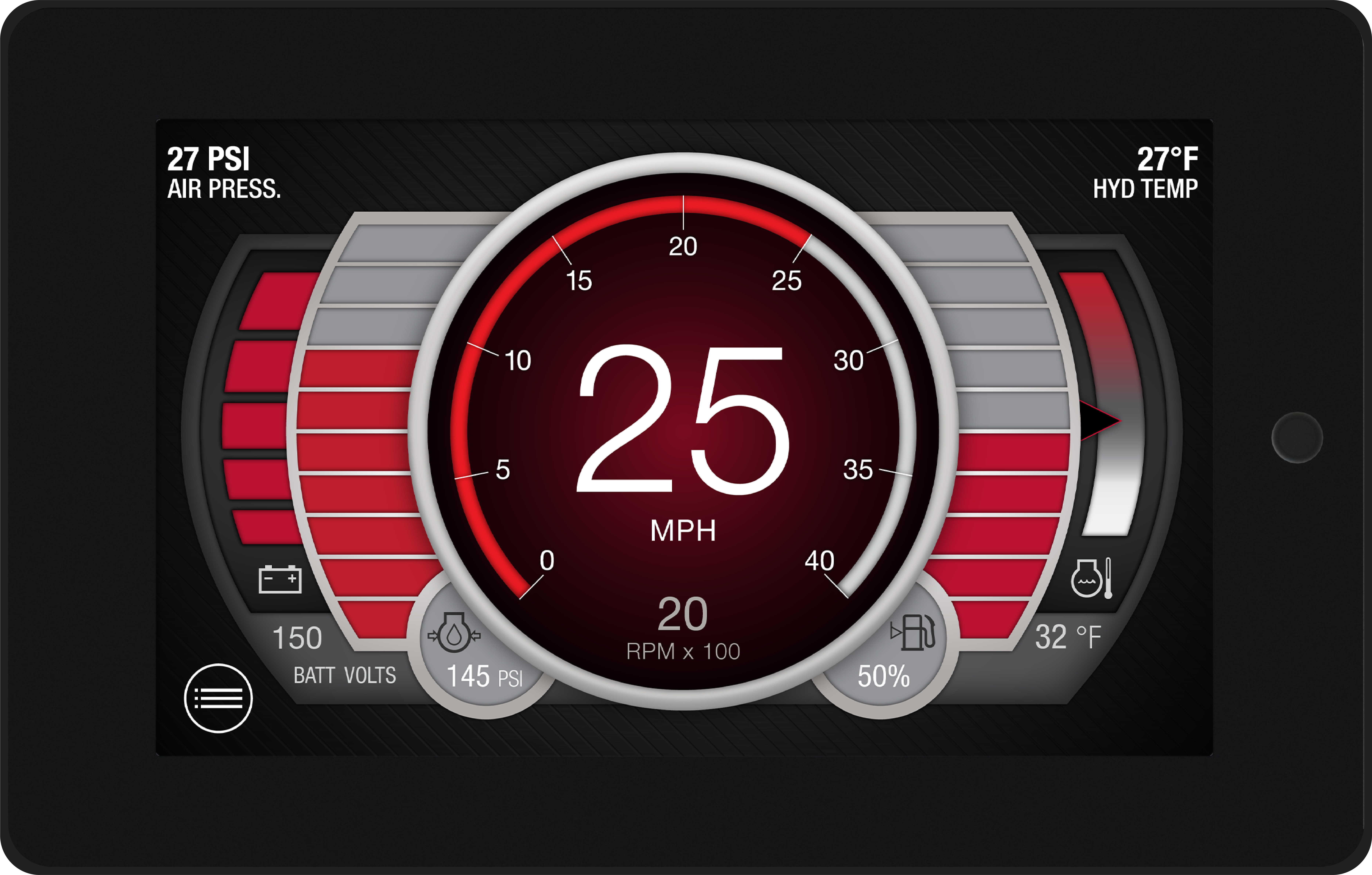

PowerView® P70

PowerVision Configuration Studio (Version 7.0+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels. See the Powervision Walk Through Tutorial for an overview of the software features.

Downloads of all versions of PowerVision Configuration Studio and Toolkit starting with 2.9 and all current and future releases are available on SPARK Software Manager to subscribed users. To purchase a subscription for PowerVision Configuration Studio on SPARK, contact your Distributor.

• P70 Specification Drawing Rev A4
• P70 3D Solid Model STEP File
• COMING SOON - PVP70 Mounting Bracket 3D Model (STEP)

CE Declaration of Conformity

• COMING SOON

No Application information is available at this time.

No Media or Tutorials are available at this time.

No Accessory information is available at this time.

• Computing
  • Processor: Renesas® RZ/G1e Arm® Cortex®-A7 dual-core processor @ 1.0 GHz (32-bit)
  • Software: QNX^® Realtime Operating System
  • Storage: 8GB
  • RAM: 512MB DDR3-SDRAM
  • Graphics: Integrated graphics processor
  • RTC (Real Time Clock): Li-Ion battery backup
• Display
  • Screen Size: 7-inch LVDS TT
  • Resolution: 800 x 480, 24-bit color
  • Contrast Ratio: Typ. 1000:1
  • Brightness: 1000 cd/m²
  • Surface: Anti-glare finish
  • Touch Panel: Projected capacitive (PCAP) with glove touch
  • Polarization: omnidirectional
  • Ambient Light Sensor: Used for Auto Brightness feature
• Audio/Video
  • Analog Video: (2) NTSC/PAL Differential Video Inputs
  • Audio:
    • 2 Zone Stereo Line Level Outputs, 20Hz - 20Khz
    • Subwoofer Mono Line Level Output, 30Hz - 250Hz
    • Amp Turn-On (High side Vbatt out, 500mA max)
• GPS - Optional
  • Requires external powered antenna, display provides 3.3V @100mA, short circuit protected
  • Receiver Channels: 72
  • Constellations: QZSS, GLONAS, BeiDou, Galileo, SBAS, WAAS, EGNOS, MSAS, GAGAN
  • Nav Update Rate: Single GNSS: up to 18Hz, 2 Concurrent GNSS: up to 10Hz
  • Powervision Application Update Rate: 10Hz
  • Position Accuracy: 2.5M CEP
  • Acquisition Time: Cold Start - 26sec, Aided Start - 3sec, Reacquisition - 1Sec
• Accelerometer (IMS)- Optional
  • 3-Axis
• Communication
  • CAN:(2) CAN 2.0B according to ISO 11898-2, J1939 & custom protocols, Software selectable  120 ohm termination resistor on CAN 1 and CAN 2.
  • USB:(1) USB 2.0B full speed host - bulkhead connector on back panel.
  • Wi-Fi: 802.11 b/g/n radio - Optional
  • Bluetooth: 5.0 Class 1 - Optional
• Electrical
  • Operating Voltage: 9 – 36 VDC, reverse polarity protected
  • Inputs:
    • (4) Digital (active-high, discrete)
    • (4) Analog (10 bit resolution, 0-5VDC, 4-20mA, resistive with 276 ohm pullup to 5Vdc)
  • Outputs:
    • (1) Analog Out 0 - 5Vdc
    • (1) Digital High Side (Vbatt, 10A)
    • (4) Digital Low side (500 mA )
• Environmental
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Protection: IP66 and IP67, for outdoor use
  • Vibration: ISO 15003: 3.9Grms (10 - 350Hz), 3 - axis
  • Shock: ±50G in 3 axes
  • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/53/EU
