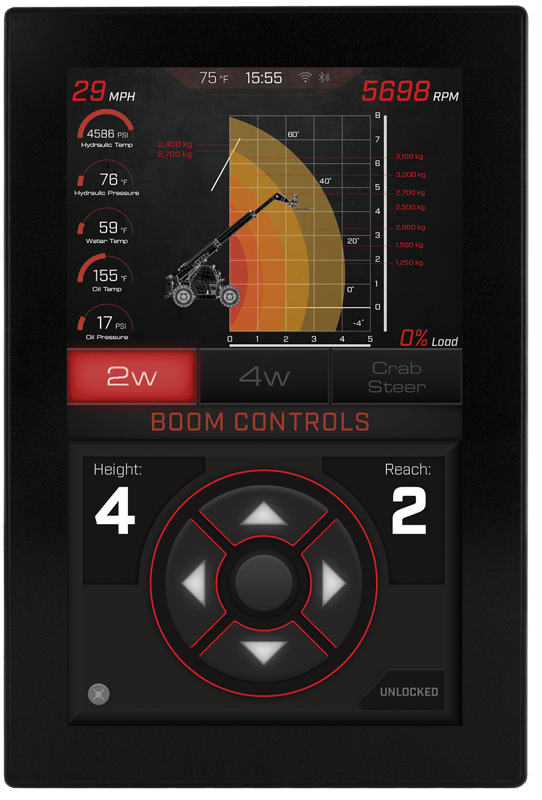

PowerView® 1100

PowerVision Configuration Studio and Toolkit (Version 2.9+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels.

Note: The full version of PowerVision Configuration Studio for Color and Monochrome Displays requires a valid Key ID to be used. If you do not have a Key ID, you may encounter limited features and saving options. To purchase a PowerVision Key ID, contact your Enovation Controls sales representative.

Downloads:

• PowerVision Configuration Studio 2.9 Downloads (Account Required)
  Downloads of PowerVision Configuration Studio and Toolkit are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

• PV1100 3D Model (STEP)
• PV1100 3D Model (PDF)
• PV1100 Mounting Bracket

• CE Declaration of Conformity
  • PV1100 CE

• PV1100 Demo Configuration (Simulation configuration, will not work on actual application)
• PV1100 Real Time Clock Demo

No application information is available at this time.

No Media or Tutorials are available at this time.

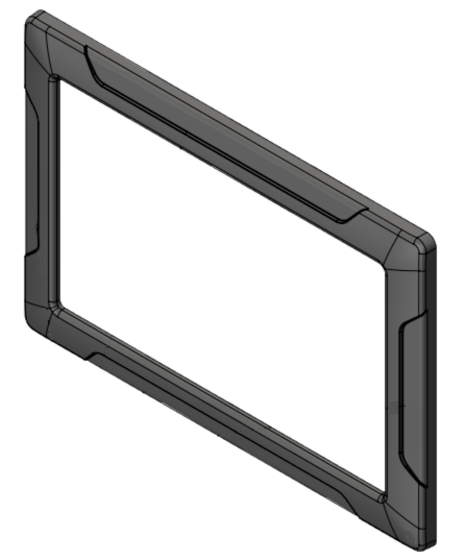

Bezel Part Number 78051813

• PV1100 Bezel 3D Model (Step File)
• Outer Dimensions: 287.46mm x 194.46
• Inner Dimensions (Viewing Area): 236.32mm x 143.78
• Thickness: 12.92mm
• Material: Black Cycoloy PC/ABS blend
• Finish: Matt
• Mounting: Bezel snaps on to the face of the display, no hardware required

• Computing
  • Processor: Renesas^® R-Car M2 with Arm^® Cortex^®-A15 dual-core processor @ 1.5 GHz (32-bit)
  • Operating System: QNX^® Realtime Operating System
  • Storage: 8 GB flash memory
  • RAM: 512 MB DDR3-SDRAM
  • Graphics: Renesas graphics processor
• Display
  • Screen Size: 10.6 inches (231.36 mm × 138.82 mm)
  • Type: LVDS TFT LCD with LED backlight, 24-bit color
  • Resolution: 1280 × 768
  • Contrast Ratio: Typ. 1000:1
  • Brightness: 1000 cd/m2
  • Surface: Anti-glare
  • Touch Panel: Projected capacitive (PCAP) with glove touch
• Hardware
  • Real Time Clock: Available with battery backup
  • Connectors:
    • (2) AMPSEAL 23 pin (main)
    • (1) AMPSEAL 35 pin (optional)
    • (1) M12 5 pin [Ethernet] (optional)
    • (1) USB pigtail
    • (1) Radio antenna jack (optional)
  • Video Input: (3) NTSC/PAL (single channel viewable)
• Communication
  • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
  • Serial: RS-485 serial (Modbus: master or slave)
  • USB: USB 2.0 full speed host
  • Ethernet: 1 X Ethernet 10/100 Base-T (optional)
  • Wi-Fi: 802.11 b/g radio (optional)
  • Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
• Electrical
  • Operating Voltage: 6 – 36 VDC, reverse polarity protected
  • Outputs:
    • (1) 500 mA switched low-side
    • (1) Frequency output (2Hz – 3KHz)
  • Inputs:
    • (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
    • (5) Discrete digital, active-high
    • (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
• Environmental
  • Operating Temperature: -40˚C to +70˚C (-40˚F to +158˚F)
  • Storage Temperature: -40˚C to +85˚C (-40˚F to +185˚F)
  • Protection: IP66 and IP67, front and back, for outdoor use
  • Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
  • Shock: ±50G in 3 axes
  • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU
