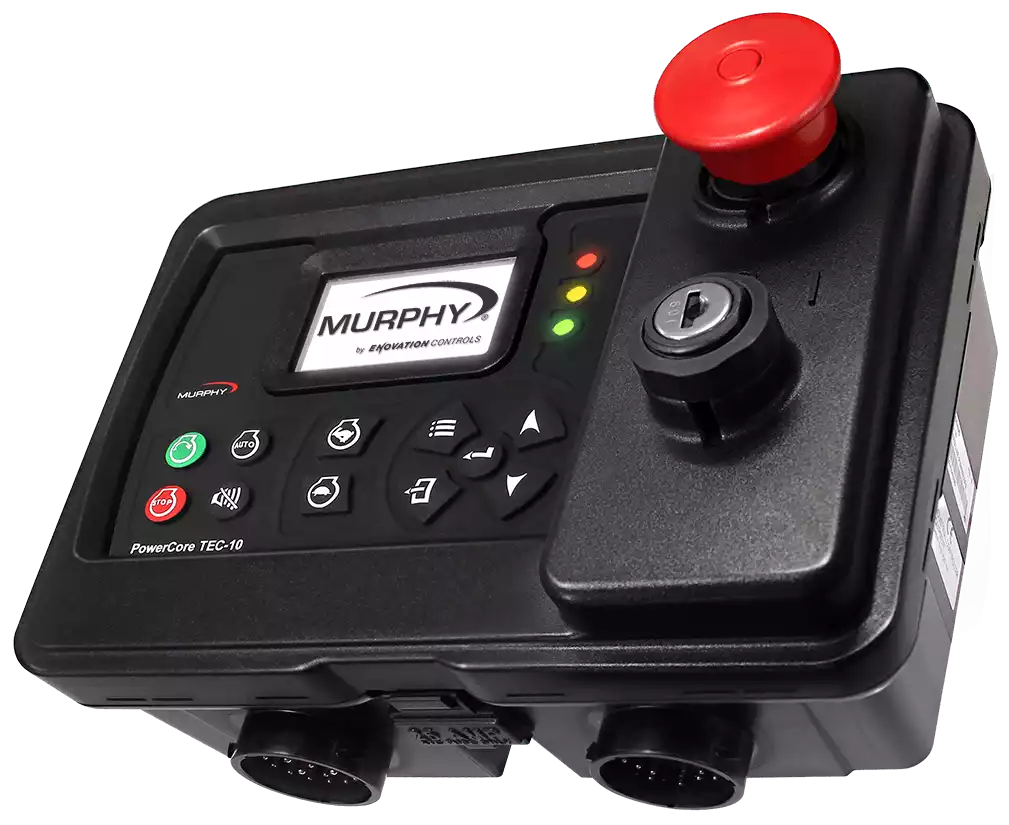

PowerCore® TEC-10 Panel for Engine Controls

PowerVision for Controllers (Version 2.8+)

PowerVision For Controllers is a simplified version of the PowerVision Configuration Studio^® PC-based software program suite used to configure controllers and displays. This version lets you create customized configurations for controllers such as the MPC-20, MPC-10 and TEC-10 without needing to know how to write code. It is freely available to anyone that wants to configure a Murphy by Enovation Controls controller.

Downloads:

• PowerVision for Controllers Downloads (Account Required)

  • Downloads of PowerVision for Controllers are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.
• PowerVision for Controllers Tutorial

• Solid Models
  • TEC-10 (STEP)
  • TEC-10 (IGS)

• CE Declaration of Conformity
  • TEC-10 CE Declaration of Conformity

None at this time

• Magnetic Pickup Installation Instructions (00-02-0181)

• PowerCore Video Guides
• PowerVision for Controllers Tutorial

None at this time

• Interface:
  • Display:
    • Monochrome HR-TFT
    • 2.7 in./ 68 mm, WQVGA (400 x 240 pixels)
    • Languages: English, Spanish, German, French, Italian
  • (3) LEDs: green (mode), yellow (warning) and red (shutdown)
  • Operator controls:
    • (11) Raised silicone keypads, tactile feedback
    • (1) Rotary switch, power on/off
    • (1) Push-switch (red), engine stop
    • (1) ATC Fuse, 25A

• Power Supply:
  • Operating Voltage: 8-32 VDC, reverse battery polarity and load dump protected
  • Cranking Power Holdup: 0 VDC up to 50 mS(also good for brownout/blackout instances)
  • Current consumption: Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.
• Inputs (9):
  • (5) Digital, configurable (active on High, Low, Open)
  • (3) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
  • (1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
• Outputs (8):
  • (2) Relay, switched +DC, 10A
  • (1) Relay, Form C (dry / volt-free), 10A
  • (2) Low-side FET (–DC), 1A
  • (2) High-side FET (+DC), 1A
  • (1) Dedicated Alternator Excitation, +DC, 1A
• Communications:
  • (1) CAN: J1939
  • (1) RS485: Modbus RTU
• Mating Connectors:
  • 21 Position, Deutsch HDP26-24-21SE
  • 31 Position, Deutsch HDP26-24-31SE
• Physical/Environmental:
• Enclosure material: Polycarbonate
• Dimensions (WxHxD): 9.59 x 7.34 x 5.20 in. (243.48 x 186.5 x 132.23mm)
• Weight: 4 lbs (1.8 kg)
• IP rating: IP67
• Operating Temperature: -40° to +85° C (-40° to 185° F)
• Storage Temperature: -40° to +85° C (-40° to 185° F)
• Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
• Shock: ±50G, 3-axis
