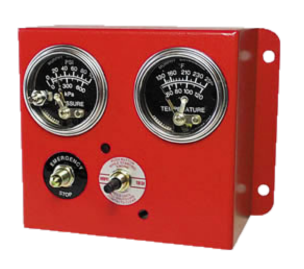

WD300LV Panel for Mechanical Engines

Description

The universally applicable WD300 Series panels are the ideal control solution for a wide variety of diesel engines requiring a energize to run signal. The standard WD300 Series panel includes basic engine protection for low oil pressure and high coolant temperature. It also includes the mechanically latched 117 Magnetic Switch and a pushbutton emergency stop switch.

Specifications

• Dual 12/24V operation
• Low Oil Pressure Swichgage: 0-100 psi, 1/8" NPT connection
• High Engine Temperature Swichgage: 130-250° F, 48 or 72 inch capillary length , 1/2" NPT adapter
• 117PH Magnetic Switch provides up to 10 Amp energize to run output
• Emergency Stop Switch
• Approximate Shipping Weight: 8 lbs. 8 oz. (3.9 kg)
• Approximate Shipping Dimensions: 8.5 x 5.25 x 5.5 in. (216 x 133 x 140 mm)

Ordering Information

• WD300LV Panel (48" capillary): Part Number 30700015
• WD300LV-E6 Panel (72" capillary): Part Number 30700050
• Oil Pressure Tubing Kit
• SV Fuel Valve
