WDU0277 for Deutz 413, 511, 912, and 913 Engines

Description

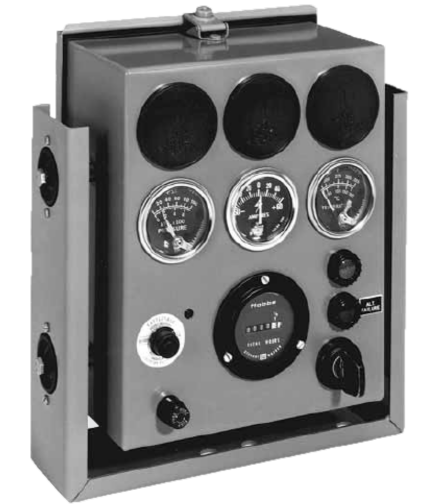

The WDU-0277 Swichgage instrument panel is suitable for all open frame DEUTZ 413, 511, 912 and 913 series engines.
This OEM panel is ideal for all power unit applications such as pumps, generators and compressors.
Swichgage instruments are provided for engine oil pressure and cylinder head temperature. Also  included  is a complete array of components for easy installation.
The panel mounts onto existing pads on the flywheel housing and can face to either side of the engine.  Shockmounts in the mounting bracket provide protection from shock and normal vibration for the panel and its components.

Specifications

• Weatherproof panel with hinged and gasketed rear access door.
• Suspension shock mounted bracket.
• Low Lube Oil pressure Swichgage with 2 ft. (0.61 m) oil pressure line and banjo fitting.
• High Cylinder Head temperature Swichgage with 4 ft. (1.2 m) capillary tubing.
• Magnetic Switch/relay for automatic shutdown
• Ammeter
• Hourmeter
• Off-Ign-Heat-Start Key switch
• Alarm lights for Alternator Failure and Preheat

Ordering Information

WDU0277: Part Number 30700027

Literature Downloads

• Sales Bulletin (DTZ-94098B; revision date – 04/2006)
• Customer Drawing 30200277
• Key Switch Removal and Installation
