75160 Pump Shutdown Panel

Description

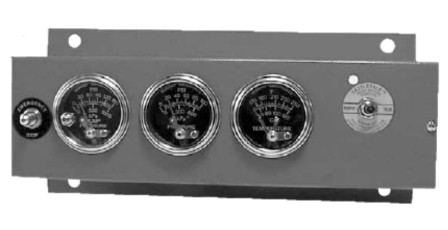

This Swichgage panel is specifically configured for irrigation engines and includes a loss of pump discharge  pressure Swichgage. A 518 Magnetic switch will shut the engine down on low pump pressure, high engine temperature, or low oil pressure.
The panel is enclosed on top, bottom, and both ends. Mounting flanges extend on top and bottom. The back  of the panel is open.
Access holes for wiring are located at the bottom of the panel.

Specifications

• Operating Voltage: 12Vdc
• Low Oil Pressure Swichgage: 20P-F-100, 0-100psi, 1/8" NPT connection
• High Coolant Temperature Swichgage: 20T-F-250, 130 -250F, 48 inch long capillary, 1/2" NPT adapter
• Low Pump Pressure Swichgage: 20PW7-F-150, 0-150psi, 1/8" NPT connection
• 518 Magnetic Switch provides up to 10 Amp energize to run or energize to shutdown signal
• Emergency Stop Button

Ordering Information

• 75160 Panel: Part Number 30700020
• Oil Pressure Tubing Kit
• SV Fuel Valve

Literature Downloads

• Sales Bulletin (IR-03063B)
• Customer Drawing 30020029
• Sales bulletin, discontinued EMEA panel versions (ss6351)

  • The following UK-manufactured (plastic case) variants of 75160x series panels have been discontinued from production:

    Model ref	Description
    B2643	751603 diagnostic centre, 12V
    B2647	751602 diagnostic centre, 12V
