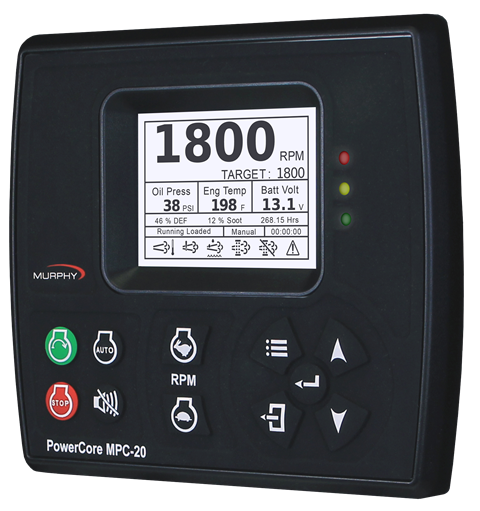

PowerCore® MPC-20 for Engine Controls

PowerVision for Controllers

PowerVision For Controllers is a simplified version of the PowerVision Configuration Studio^® PC-based software program suite used to configure controllers and displays. This version lets you create customized configurations for controllers such as the MPC-20, MPC-10 and TEC-10 without needing to know how to write code. It is freely available to anyone that wants to configure a Murphy by Enovation Controls controller.

Downloads:

• MPC-20 Configuration Version 2.9.20029
• MPC -20 Full Installation File Version 2.9.20029
• PowerVision for Controllers Downloads (Account Required)

  • Downloads of PowerVision for Controllers are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.
• PowerVision for Controllers Tutorial

• Solid Models
  • MPC-20 (STEP)
  • MPC-20 (SLDPRT)

• CE Declaration of Conformity
  • MPC-20 EU Declaration of Conformity
• CSA Certificate of Compliance
  • MPC-20 CSA Certificate of Compliance

No application information is available at this time.

• MPC-20 FAQs
• Magnetic Pickup Installation Instructions (00-02-0181)

• PowerCore Video Guides
• PowerVision for Controllers Tutorial

• Connector kits, EMEA regions (ys6475)

• Interface
  • Display:
    • Monochrome Transflective LCD
    • 3.8 in./ 96.5 mm, QVGA (320 x 240 pixels)
    • Languages: English, Spanish, German, French, Italian
  • (3) LEDs: green (mode), yellow (warning) & red (shutdown)
  • Operator controls:
    • (11) Raised silicone keypads, tactile feedback
• Power Supply:
  • Operating Voltage: 8-32 VDC, reverse battery polarity & load dump protected
  • Current consumption: 18W Max without 2 2A High-sides, active, 146W Max with 2 2A High-sides active
• Inputs (15):
  • (6) Digital, configurable (active on High, Low, Open)
  • (8) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
  • (1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
•  Outputs (13):
  • (6) Relay, Form C (dry / volt-free), 10A
  • (2) Low-side FET (–DC), 1A
  • (2) High-side FET (+DC), 2A
  • (2) +5VDC, 200mA
  • (1) 0-5VDC Analog
• Communications:
  • (1) CAN: J1939
  • (1) RS485: Modbus RTU
  • (1) USB: Programming
• Mating Connector:
  • Delphi, SICMA 90 Position
• Physical/Environmental:
  • Enclosure Material: Polycarbonate
  • Dimensions (WxHxD): 8.21 x 7.46 x 2.26 in. (208.7 x 189.7 x 57.5 mm)
  • Mass: 0.9kg (2.0lb)
  • IP rating: IP67 Complete Controller, IP66 Panel Mount with Gasket (Minimum 14Ga Metal Plate)
  • Operating Temperature: -40° to +85°C (-40° to 185°F)
  • Storage Temperature: -40° to +85°C (-40° to 185°F)
  • Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
  • Shock: ±50G, 3-axis
  • EMI/RFI: SAE J1113
  • Shipping Weight: 2lbs. 7.1 oz (1.11 kg.)
  • Shipping Dimensions: 9.5 x 9 x 5 in. (241 x 229 x 127 mm.)
