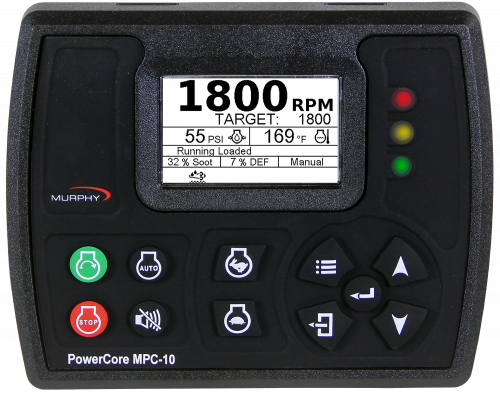

PowerCore® MPC-10 for Engine Controls

PowerVision for Controllers

PowerVision For Controllers is a simplified version of the PowerVision Configuration Studio^® PC-based software program suite used to configure controllers and displays. This version lets you create customized configurations for controllers such as the MPC-20, MPC-10 and TEC-10 without needing to know how to write code. It is freely available to anyone that wants to configure a Murphy by Enovation Controls controller.

Downloads:

• MPC-10 Configuration File Version 20031
• MPC-10 Full Installation File V 20031
• PowerVision for Controllers Downloads (Account Required)

  • Downloads of PowerVision for Controllers are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.
• PowerVision for Controllers Tutorial

• Solid Models
  • MPC-10 (STEP)

• CE Declaration of Conformity
  • MPC-10 EU Declaration of Conformity
• CSA Certificate of Compliance
  • MPC-10 CSA Certificate of Compliance

No demo / Examples at this time.

• Magnetic Pickup Installation Instructions (00-02-0181)

• PowerCore Video Guides
• PowerVision for Controllers Tutorial

• Connector kits, EMEA regions (ys6475)

• Interface:
  • Display:
    • Monochrome HR-TFT
    • 2.7 in./ 68 mm, WQVGA (400 x 240 pixels)
    • Languages: English, Spanish, German, French, Italian
  • (3) LEDs: green (mode), yellow (warning) and red (shutdown)
  • Operator controls:
    • (11) Raised silicone keypads, tactile feedback
• Power Supply:
  • Operating Voltage: 8-32 VDC, reverse battery polarity and load dump protected
  • Cranking Power Holdup: 0 VDC up to 50 mS(also good for brownout/blackout instances)
  • Current consumption: Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.
• Inputs (9):
  • (5) Digital, configurable (active on High, Low, Open)
  • (3) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
  • (1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
• Outputs (8):
  • (3) Relay, Form C (dry / volt-free), 10A
  • (2) Low-side FET (–DC), 1A
  • (2) High-side FET (+DC), 1A
  • (1) Dedicated Alternator Excitation, +DC, 1A
• Communications:
  • (1) CAN: J1939
  • (1) RS485: Modbus RTU
  • (1) USB 2.0B for Programming
• Mating Connectors:
  • Deutsch:
    • Gray DT06-12SA-P012 (Wedge Lock W12S-P012)
    • Black DT06-12SB-P012 (Wedge Lock W12S-P012)
    • Green DT06-12SC-P012 (Wedge Lock W12S-P012)
    • USB 6 pin
• Physical/Environmental:
  • Enclosure Material: Polycarbonate
  • Dimensions (WxHxD): 6.58 x 5.25 x 2.55 in. (167.09 x 133.29 x 64.81 mm)
  • Mass: 1lb. 1oz.
  • Weight: 4 lbs (1.8 kg)
  • IP rating: IP67 & IP69K, IP66 Panel Seal with Gasket
  • Operating Temperature: -40° to +85° C (-40° to 185° F)
  • Storage Temperature: -40° to +85° C (-40° to 185° F)
  • Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
  • Shock: ±50G, 3-axis
  • Shipping Weight: 2lbs. 7.1 oz. (1.11 kg)
  • Shipping Dimensions: 8 x 8 x 5-11/16 in. (204 x 204 x 127 mm)
