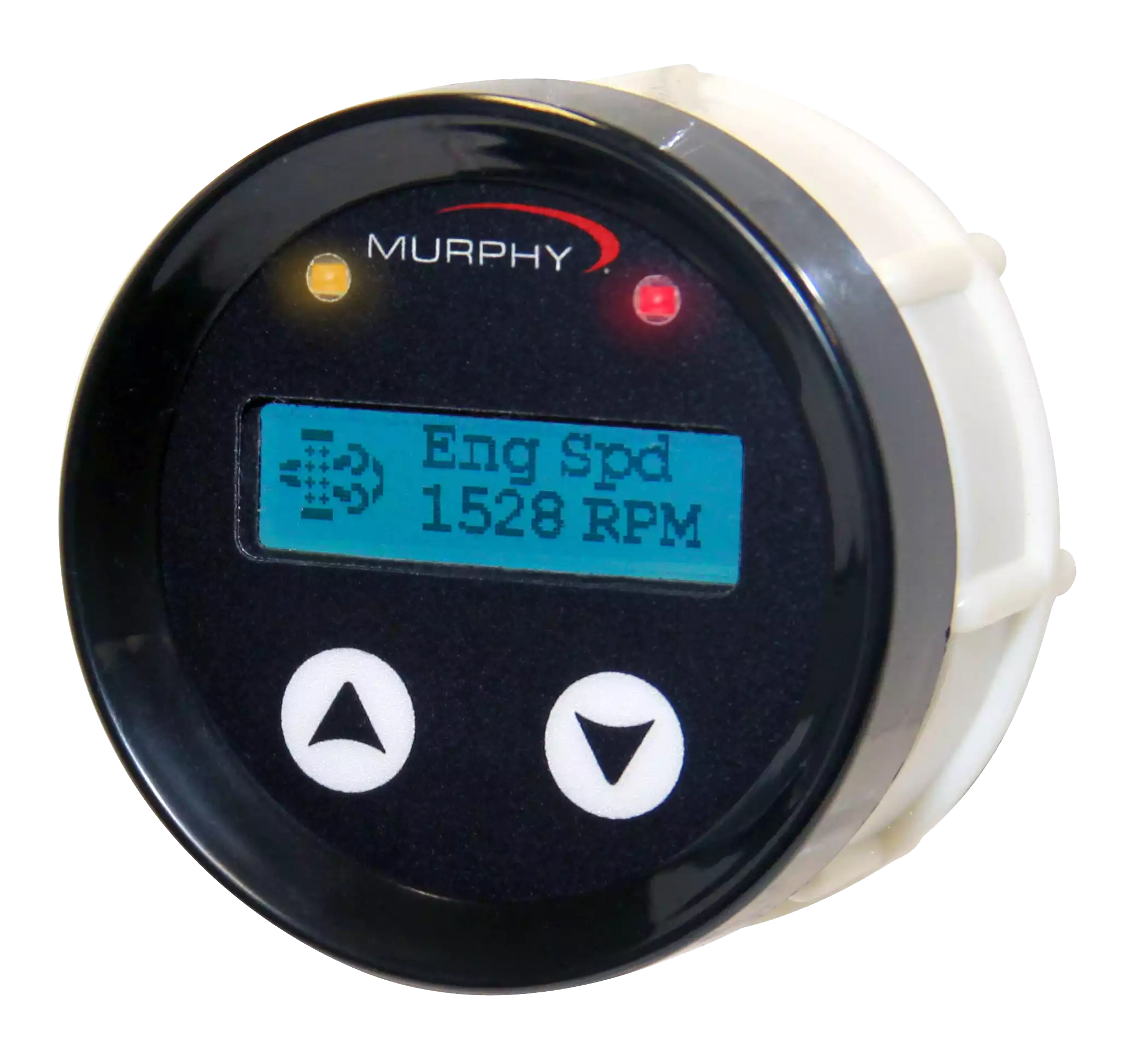

PowerView® 25

No drawings are available at this time.

No compliance documents or certificates are available at this time.

No application information is available at this time.

• PV25 Wiring Harness Diagram (1211194)
• Tier 4 Overview (1110836)

No media or tutorials are available at this time.

No accessory information is available at this time.

Environmental

• Operating Temperature: -40° to 158°F (-40 to 70°C)
• Storage Temperature: -67° to 185°F (-55 to 85°C)
• Sealing: IP68
• CAN Bus: SAE J1939 compliant

Connectors

• 4-pin AMP Mini-universal Mate-N-Lok Connector
• AMP Plug: P/N 172338-1
• AMP Socket: P/N 171639-1 (4 each, assumes 18 gage wire. See
• AMP Plug specification to match socket and wire size.)
• Maximum Panel Thickness: 3/8 inch (9.6 mm)
• Shipping Weight: (all models) 0.2 lb. (0.1 kg)
• Shipping Dimensions: (all models)
  3-7/8 x 2-3/4 x 2-3/4 in.
  (98.4 x 69.85 x 69.85 mm)
