PowerView® 350

PowerVision Configuration Studio and Toolkit (Version 2.8+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels.

Note: The full version of PowerVision Configuration Studio for Color and Monochrome Displays requires a valid Key ID to be used. If you do not have a Key ID, you may encounter limited features and saving options. To purchase a PowerVision Key ID, contact your Enovation Controls sales representative.

Downloads:

• PV350R2 Configuration Version 2.9.22001
• PowerVision Configuration Studio 2.9 Downloads (Account Required)

• PowerVision Configuration Studio 2.8 Downloads (Account Required)
  Downloads of PowerVision Configuration Studio and Toolkit are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

• Solid Models
  • PV350 (IGS)
  • PV350 (STEP)

• CE Declaration of Conformity
  • PV380-R2 CE Declaration of Conformity
• E-Mark Certification
  • PV350-R2 E-Mark Certification

No application information is available at this time.

• Tier 4 Overview (1110836)

No media or tutorials are available at this time.

• Connector kits, EMEA regions (ys6475)

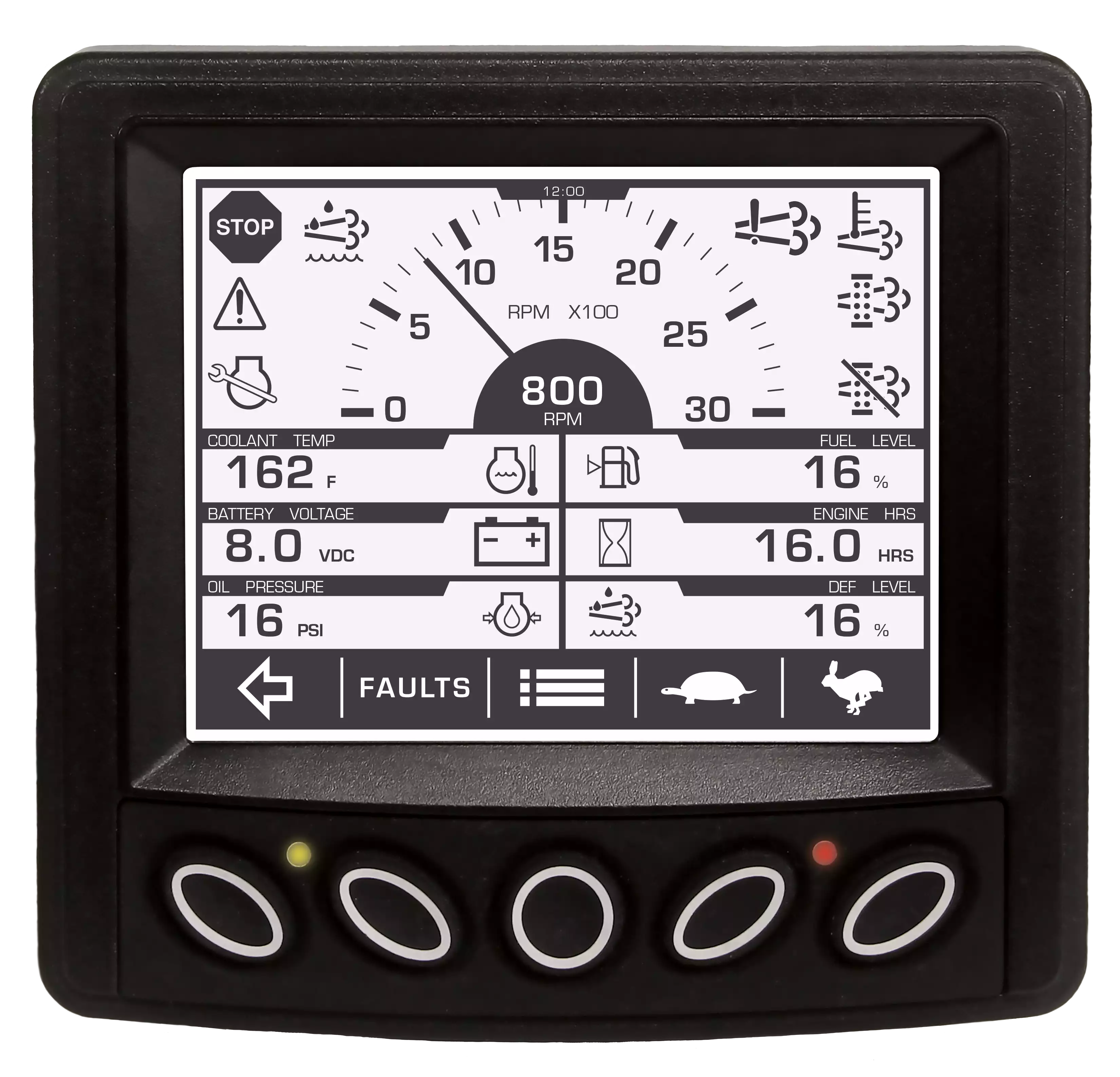

PV350-R2

• Interface
  • Display:
    • Monochrome Transflective LCD
    • 3.8 in./ 96.5 mm, QVGA (320 x 240 pixels)
    • Viewing Angle: ±50 horizontally; +45°/-60° vertically
    • Languages: English, Spanish, German, French, Italian
    • RTC: Real-time clock with Li-ion battery backup
  • (2) LEDs: yellow (warning) & red (shutdown)
  • Operator controls:
    • (5)  Silicon push buttons, tactile feedback
• Power Supply:
  • Operating Voltage: 6-32 VDC, reverse battery polarity and load dump protected
• Inputs (1):
  • (1) Analog, configurable (resistive)
•  Outputs (1):
  • (1) Low-side FET (–DC), 500mA
• Communications:
  • (2) CAN 2.0B; J1939 and NMEA 2000 protocol, (Second CAN port NMEA 2000 isolated)
• Mating Connector(s):
  • Deutsch DT series 6 pin; M12 for NMEA 2000 (micro-C)
• Physical/Environmental:
• Enclosure Material: Polycarbonate
• Dimensions (WxHxD): N/A
• Mass: N/A
• IP rating: IP67
• Operating Temperature: -40° to +85°C (-40° to 185°F)
• Storage Temperature: -40° to +85°C (-40° to 185°F)
• Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
• Shock: ±50G, 3-axis
• EMC/EMI:
  • 2004/108/EC and 2006/95/EC directives
  • EN61000-6-4:2001 (emission)
  • EN61000-6-2:2001 (immunity)
  • EN-50121-3-2 and EN 12895
  • SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41
• Shipping Weight: N/A
• Shipping Dimensions: N/A
