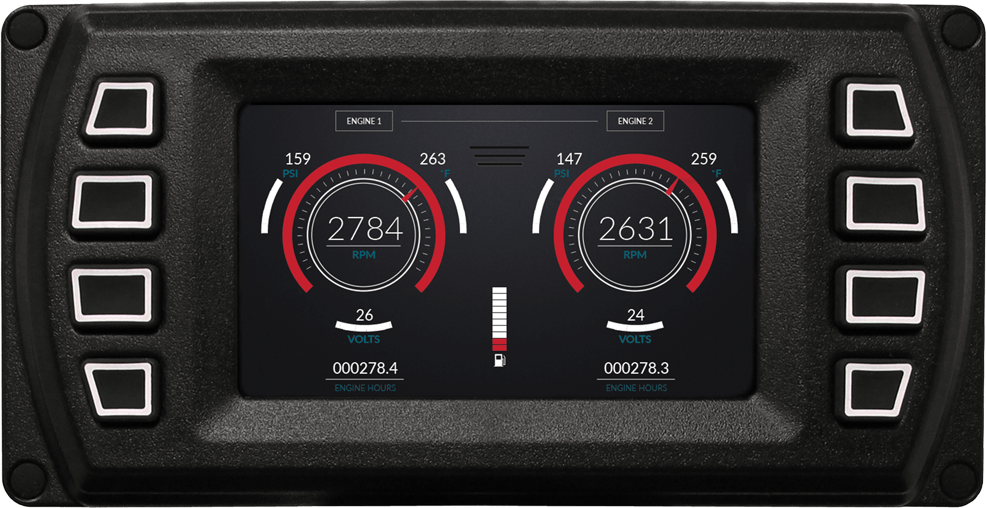

PowerView® 450 / HelmView® 450

PowerVision Configuration Studio and Toolkit (Version 2.8+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels.

Note: The full version of PowerVision Configuration Studio for Color and Monochrome Displays requires a valid Key ID to be used. If you do not have a Key ID, you may encounter limited features and saving options. To purchase a PowerVision Key ID, contact your Enovation Controls sales representative.

Downloads:

• PowerVision Configuration Studio 2.9 Downloads (Account Required)

• PowerVision Configuration Studio 2.8 Downloads (Account Required)
  Downloads of PowerVision Configuration Studio and Toolkit are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

• Solid Models
  • PV450 (IGS)
  • PV450 (STEP)

• CE Declaration of Conformity
  • PV450 CE Declaration of Conformity

No application information is available at this time.

• Tier 4 Overview (1110836)

No media or tutorials are available at this time.

• Connector kits, EMEA regions (ys6475)

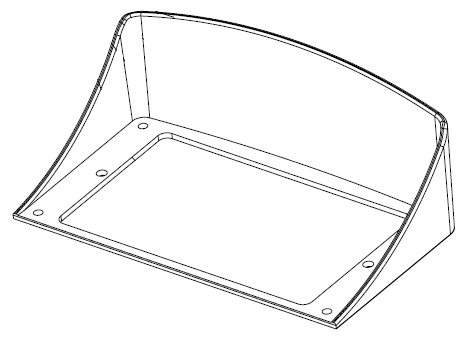

• Visor Kit P/N 78000831 - Supplied with Visor and Mounting Hardware

• Interface
  • Display:
    • Bonded 16:9 16-bit Color Transmissive TFT LCD
    • 4.3 in./ 109.2 mm, WQVGA (480 x 272 pixels)
    • Orientation: Landscape or portrait
    • Backlighting: LED, 500-650 cd/m2 (30,000 hr lifetime)
    • RTC: Real-time clock with Li-ion battery backup (0.033 mWh)
• Operator controls:
  • (8)  Silicon with white LED backlit push buttons, tactile feedback
• Power Supply:
  • Operating Voltage: 6-32 VDC, protected against reverse polarity and load dump (CSA, 6-30 VDC)
  • Power Consumption: 10W max. (CSA, 163 mA max @ 30VDC)
• Inputs (2):
  • (1) Analog, configurable (resistive, 0-5 V or 4-20 mA, 10-bit resolution)
  • (2) Optional: NTSC/PAL input channels with one displayed at a time
•  Outputs (1):
  • (1) Open-drain, 500 mA
• Communications:
  • (2) CAN 2.0B; J1939, CAN Open, NMEA 2000 protocol, (optional NMEA 2000 isolation with HVS450)
  • (1) RS-485; MODBUS Master/Slave
  • (1) USB: 2.0 host, full speed
• Mating Connector(s):
  • (4) Deutsch DT 6-pin connectors
• Computing:
  • Microprocessor: Freescale i.MX357 32bit, 532Mhz
  • OS: QNX Realtime
  • Memory:
    • 256 MB Flash
    • 128 MB DDR2 SDRAM
• Physical/Environmental:
• Enclosure Material: Polycarbonate
• Dimensions (WxHxD): N/A
• Mass: N/A
• IP rating: IP66 and IP67, front and back
• Operating Temperature: -40° to +85°C (-40° to 185°F)
• Storage Temperature: -40° to +85°C (-40° to 185°F)
• Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
• Shock: ±50G, 3-axis
• EMC/EMI:
  • 2004/108/EC EN 60945:2002
  • EN 61000-6-4 EN 50121-3-2
  • EN 61000-6-2 (immunity) EN 12895
  • J1113/2, 4, 11, 12, 21, 24, 26 and 41
• Shipping Weight: N/A
• Shipping Dimensions: N/A

• Specifications applicable to CSA-certified PV450 only
  • CSA Certification: Class I Div 2 Groups B, C & D; T4; IP66
  • CAN: (2) CAN 2.0B (transmission rates up to 1Mbps)
  • Protocols: J1939 and CAN open
  • Environmental Protection: IP 66 and 67
