S35 Technical Specifications

• To enter the menu use password 3482

• The following Parameters are currently supported in the standard application as of version 1.0.0. These parameters can be displayed on any of the gauges by selecting them from the menu. Additional parameters can be added by creating a custom application, see your distributor for details.

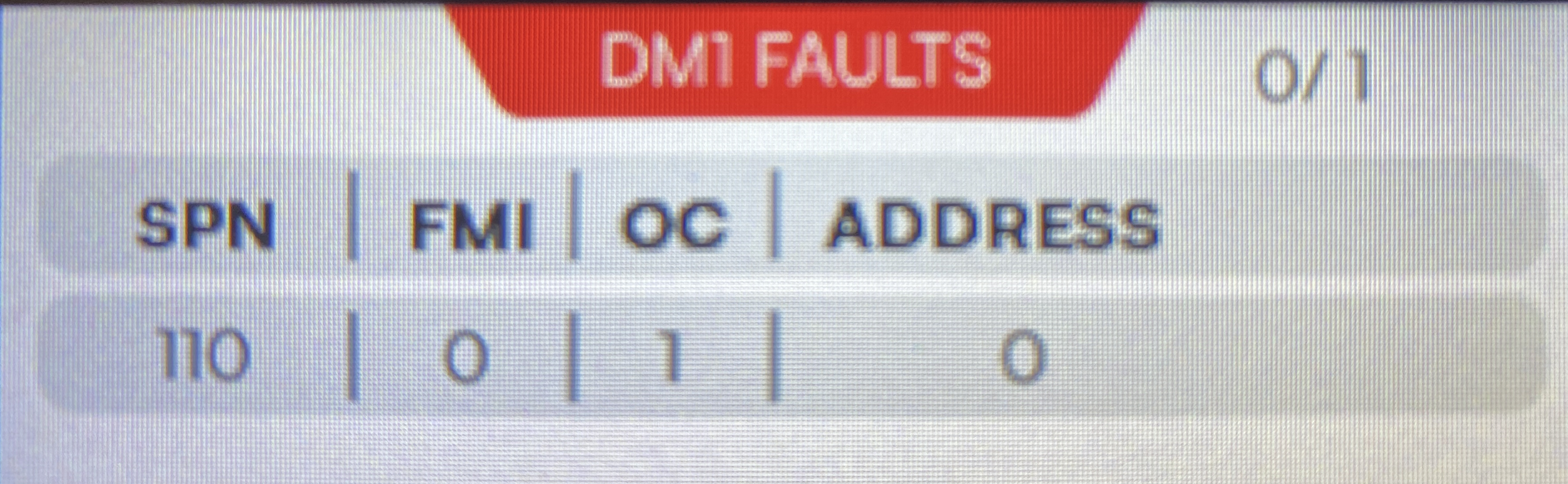

• The S35 standard application will display currently active J1939-DM1 fault codes on a dedicated faults page sorted by SPN and FMI code. The S35 does not shut the engine down on fault condition, all shutdowns will be generated by the engine ECM.

• SPN = Suspect Parameter Number - Indicates what part of the system is reporting an error. See Supported Parameters section for a partial list of SPN definitions. Contact equipment manufacturer for a full list.
• FMI = Failure Mode Indicator - Indicates the reported failure. See table below.
• OC = Occurrence Count - how often the failure occurred.
• Address - The source address (SA) of the device reporting the failure. SA 0 is used by the engine ECU. Transmissions use SA 3.

Standard Application File Downloads

• S35 Bootloader Version 1.0.0
• S35 Application Version 1.0.0
• S35 Application and Bootloader Update Procedure

Custom Application Software

Custom applications can be created by our premier distribution partners. Please visit our main website to find a distributor in your area.

• Solid Models

  • S35 Model (STEP)
  • Coming Soon - S35 Model (SLDPRT)
•  Technical Drawing
  • Coming Soon - S35 Technical Specifications Drawing

• CE Declaration of Conformity
  • S35 CE Declaration of Conformity

• Use on any J1939 CAN based electronic engine driven application.
• Monitor engine parameters and fault codes.
• Start and Stop the engine from the display by manual operator button control using the digital outputs. The digital outputs must be connected to relays to drive the starter and ECU enable.

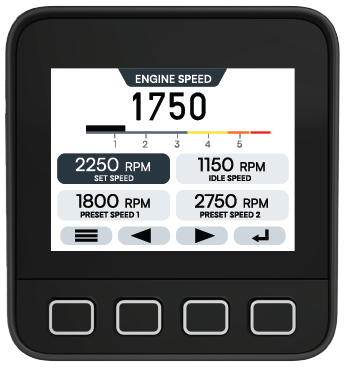

• Throttle the engine over CAN from operator button control, features two preset speeds or variable speed selection.
• Control emissions DPF regeneration to force or inhibit regeneration.
• Use in conjunction with the SenderCAN PLUS to monitor parameters not managed by the engine ECU. Transmission parameters are a common example.

• COMPUTING
  • Processor: Arm® Cortex®-M33 microcontroller @ 160 MHz (32-bit)
  • Operating System: Free RTOS
  • Storage: 1 MB Flash Memory
  • RAM: 320 KB SRAM
  • Graphics: Integrated Graphics Controller
• DISPLAY/HMI
  • Screen: 3.5-Inch Square, 24bit color
  • Resolution: 320 x 240 QVGA
  • Contract Ratio/Brightness: 700 NITS
  • Touch Panel: 4 – Tactile Silicon buttons
  • Surface: Anti-glare finish
• INTERFACES
  • CAN: (1) CAN 2.0B according to ISO 11898-2, J1939 (Selectable 250k/500k/1Mb baud rate)
  • USB: (1) USB-C 2.0B full speed host
  • RS485: (1) HALF DUPLEX
  • Inputs: (2) Analog (0-5V, 4-20ma, Resistive) (1) Freq In (30Hz – 10KHz)
  • Outputs: (2) Digital Low-side open drain 500mA
  • Real Time Clock: Yes
• ELECTRICAL/ENVIRONMENTAL
  • Operating Voltage: 6 - 36 VDC, Reverse polarity protected
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • Protection: IP67
  • Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
  • Shock: ±50G, 3-axis
• PHYSICAL
  • Mounting: 2” SAE HOLE with ring nut
  • Connectors: (2) 6-pin Deutsch DT06-6 Connectors
• COMPLIANCE
  • EMC/EMI: ISO 13766, ISO 14982
  • CE: Yes
  • REACH: Yes
  • ROHS: Yes
