Standard model features Engine Monitoring, Engine Start/Stop, Data Trouble Codes, Engine Throttling, Emissions Regeneration Control, and Emissions/Fault Indicators.

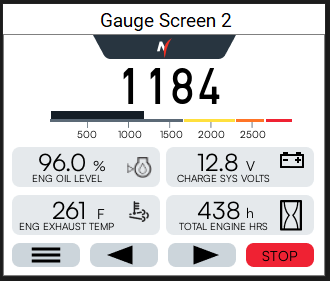

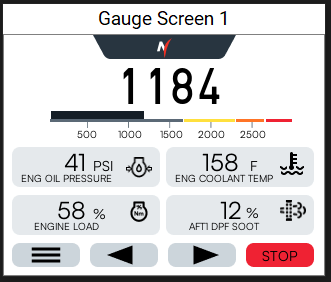

- Two four-up plus tachometer J1939 engine data screens, menu selectable.
- Select from 73 of the most common J1939 engine and emissions J1939 parameters. See Supported Parameters list below.
- Start and Stop the engine from the main screens.

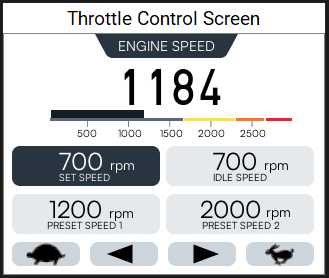

- TSC1 engine throttling screen with menu selectable Idle, Preset 1, and Preset 2 setpoints. Set speed can be adjusted on the fly by selecting a preset or using speed up/down buttons.

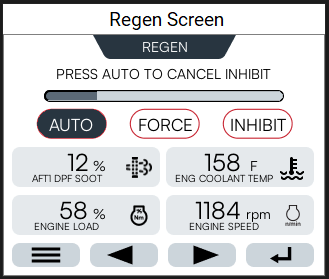

- Regen screen allows forcing or inhibiting a regen or setting it to Auto.

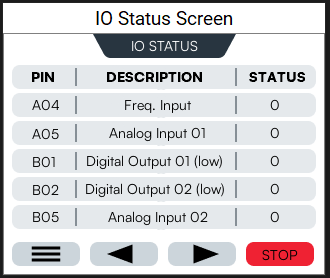

- IO Status screen displays current status and assignment for all the IO.
- DM1 Fault screen displays all active diagnostic faults.
- Service Reminders for Eng Oil, Air Filters, Hyd Oil, Service Engine, and Service Machine with configurable service intervals.
- Display CAN Address - configurable from Communications menu.
- Configurable CAN Baud Rate, 250k, 500k, and 1Mb.
- Multi-Language support - select English, French, German, Spanish, Italian, Chinese, Korean, or Portuguese from the menu.
- Units - select from imperial or metric or J1939 default.
- Auto-Dim - Automatically dim the backlight after a selectable amount of time to conserve power.
- Dark Mode - Switch between white background with black text or dark background with white text.
- MODBUS PVA Gauge support.
- Custom Logo - simply drag and drop a new logo onto the display using a USB-C connection to a computer.
- Analog Inputs - configurable to measure pressure, temperature, percent, or switch input using either a resistive sender, 4-20mA transmitter, or 0-5V sensor. Select from standard senders or create a custom curve. Configurable warning setpoints. Display on any of the 4-up screens.
- Engine Hours - from ECU or internally calculated machine hours.
- Digital Outputs - Selectable functions include ECU Enable, Overspeed, Engine Alarm, General Alarm, and Engine Crank.
- Frequency Input - Configurable for Engine Speed or Vehicle Speed with alarms for high or low setpoints. Display on any of the 4-up screens.
Many of the S35 features are customizable through the menu making it adaptable for specific applications.
To enter the menu use password 3482.
- For a list of Source Addresses by engine and Throttle troubleshooting tips reference this article.
- The following Parameters are currently supported in the standard application as of version 1.0.0. These parameters can be displayed on any of the gauges by selecting them from the menu. Additional parameters can be added by creating a custom application, see your distributor for details.
SPN | Description |
22 | Extended Crankcase Blow-by Pressure |
51 | Throttle Valve 1 Position |
52 | Intercooler Temperature |
84 | Wheel Based Vehicle Speed |
91 | Accelerator Pedal Position 1 |
92 | Engine % Load at Current RPM |
94 | Fuel Delivery Pressure |
96 | Fuel Level 1 |
98 | Engine Oil Level |
100 | Engine Oil Pressure |
101 | Crankcase Pressure |
102 | Intake Manifold 1 Pressure |
105 | Intake Manifold 1 Temperature |
106 | Air Inlet Pressure |
107 | Air Filter 1 Differential Pressure |
108 | Barometric Pressure |
109 | Engine Coolant Pressure 1 |
110 | Engine Coolant Temperature |
111 | Engine Coolant Level 1 |
157 | Fuel Injector Metering Rail 1 Pressure |
158 | Key Switch Battery Voltage |
161 | Transmission Input Shaft Speed |
167 | Charging System Voltage |
168 | Battery Potential Voltage |
172 | Air Inlet Temperature |
173 | Exhaust Temperature |
174 | Fuel 1 Temperature |
175 | Engine Oil Temperature |
177 | Transmission Oil Temperature |
182 | Trip Fuel |
183 | Fuel Rate |
184 | Instantaneous Fuel Economy |
185 | Average Fuel Economy |
190 | Engine Speed (RPM) |
191 | Transmission Output Shaft Speed |
244 | Trip Distance |
245 | Total Vehicle Distance |
247 | Engine Hours |
249 | Engine Total Revolutions |
250 | Total Fuel Used |
441 | Aux Temperature 1 |
513 | Actual Engine % Torque |
515 | Engine Desired Operating Speed (RPM) |
523 | Transmission Current Gear |
524 | Transmission Selected Gear |
525 | Transmission Requested Gear |
558 | Accelerator Pedal 1 Low Side Switch |
573 | Transmission Torque Converter Lockup Engaged |
701 | Aux I/O 1 |
975 | Engine Fan 1 Estimated Speed |
1387 | Aux Press 1 |
1436 | Engine Ignition Timing |
1638 | Hydraulic Temperature |
1761 | SCR Catalyst Tank Level 1 (DEF) |
1762 | Hydraulic Pressure |
3031 | DEF Tank Temperature |
3242 | DPF Intake Temperature |
3246 | DPF Outlet Temperature |
3517 | SCR Catalyst Tank Level 2 (DEF) |
3697 | Diesel Particular Filter (DPF) Lamp Status |
3698 | Exhaust System High Temp Lamp |
3700 | DPF Active Regeneration Status |
3702 | DPF Active Regeneration Inhibited |
3719 | DPF Soot Load % |
3720 | DPF Ash Load % |
5078 | Amber Warning Lamp Status |
5079 | Red Stop Lamp Status |
5080 | Malfunction Lamp Status |
5082 | Oil Pressure Low Lamp |
5083 | Coolant Temperature High Lamp |
5245 | Diesel Exhaust Fluid Low Level |
5246 | SCR Operator Inducement |
6709 | Speed High Lamp |
- The S35 standard application will display currently active J1939-DM1 fault codes on a dedicated faults page sorted by SPN and FMI code. The S35 does not shut the engine down on fault condition, all shutdowns will be generated by the engine ECM.
- SPN = Suspect Parameter Number - Indicates what part of the system is reporting an error. See Supported Parameters section for a partial list of SPN definitions. Contact equipment manufacturer for a full list.
- FMI = Failure Mode Indicator - Indicates the reported failure. See table below.
- OC = Occurrence Count - how often the failure occurred.
- Address - The source address (SA) of the device reporting the failure. SA 0 is used by the engine ECU. Transmissions use SA 3.
FMI | Description |
0 | Above Normal - Most Severe Level |
1 | Below Normal - Most Severe Level |
2 | Data Erratic or Incorrect |
3 | Voltage Above Normal or Shorted High |
4 | Voltage Below Normal or Shorted Low |
5 | Current Below Normal or Open Circuit |
6 | Current Above Normal or Shorted |
7 | Mechanical System not Responding or Out of Calibration |
8 | Abnormal Frequency or PWM Rate |
9 | Abnormal Update Rate |
10 | Abnormal Rate of Change |
11 | Problem Unknown |
12 | Bad ECM, Controller, or Smart Sensor |
13 | Out of Calibration |
14 | Special Instructions |
15 | Above Normal - Least Severe Level |
16 | Above Normal - Moderately Severe Level |
17 | Below Normal - Least Severe Level |
18 | Below Normal - Moderately Severe Level |
19 | CAN Data Error |
20 | Data Drifted High |
21 | Data Drifted Low |
22 - 30 | Reserved for Future Use |
31 | Condition Exists |
- Create a custom logo using graphics software like MS Paint, set to 200pixels wide x 100pixels tall and 24 bit color.
- Save the file as a bitmap image with the file name "logo.bmp".
- Connect the display to your computer with a USB-C cable and launch a browser window to drag and drop the logo.bmp file onto the displays file system.
- Power cycle the display and the new logo will automatically appear.
Standard Application File Downloads
This is the latest version of the standard factory loaded software. The S35 can be easily updated with this software using a USB-C Flash memory device, see instructions below. Typically only the application needs to be updated.
-
S35 Application Version 1.14.18 (5/1/2025)
- Added logo customization
- Added PVA gauge support
- Added configurable CAN baud rate selection
- S35 Bootloader Version 1.0.0
- S35 Software Update Procedure
Custom Application Software
Custom applications can be created by our premier distribution partners. Please visit our main website to find a distributor in your area.
- Installation Manual - S35 Installation Manual
-
Solid Models
- S35 Model (STEP)
- Coming Soon - S35 Model (SLDPRT)
- Technical Drawing
- Coming Soon - S35 Technical Specifications Drawing
- CE Declaration of Conformity
- Use on any J1939 CAN based electronic engine driven application.
- Monitor engine parameters and fault codes.

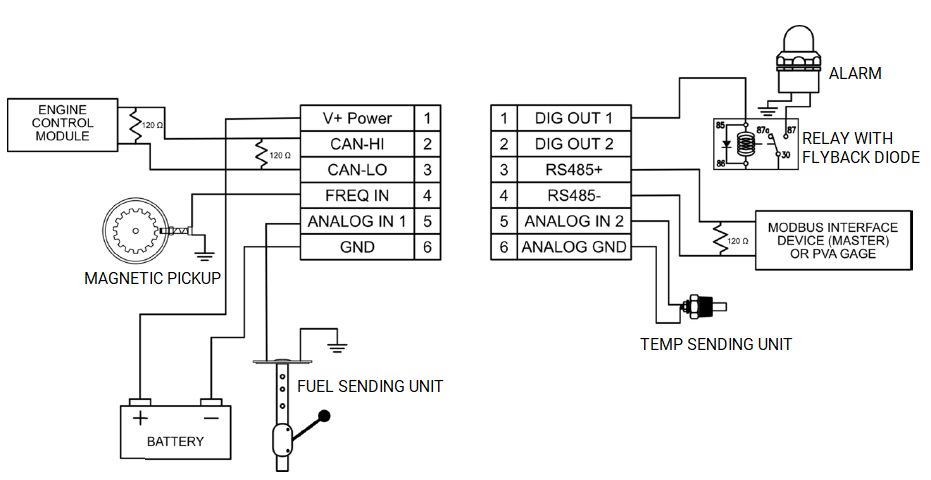

- Start and Stop the engine from the display by manual operator button control using the digital outputs. The digital outputs must be connected to relays to drive the starter and ECU enable.
- Throttle the engine over CAN from operator button control, features two preset speeds or variable speed selection.
- Control emissions DPF regeneration to force or inhibit regeneration.
- Use in conjunction with the SenderCAN PLUS to monitor parameters not managed by the engine ECU. Transmission parameters are a common example.
- Throttling Example
Visit our channel on Youtube https://www.youtube.com/@EnovationControlsTulsa.
Part Number |
Description |
---|---|
78700727 | S35 Color Display |
78900727 | S35 Color Display (24 Pack) |
38000022 | Harness, Connector A, Can/Power - Terminated, 3' pigtail |
38000023 | Harness, Connector B, I/O, 3' pigtail |
-
COMPUTING
- Processor: Arm® Cortex®-M33 microcontroller @ 160 MHz (32-bit)
- Operating System: Free RTOS
- Storage: 1 MB Flash Memory
- RAM: 320 KB SRAM
- Graphics: Integrated Graphics Controller
-
DISPLAY/HMI
- Screen: 3.5-Inch Square, 24bit color
- Resolution: 320 x 240 QVGA
- Contract Ratio/Brightness: 700 NITS
- Touch Panel: 4 – Tactile Silicon buttons
- Surface: Anti-glare finish
-
INTERFACES
- CAN: (1) CAN 2.0B according to ISO 11898-2, J1939 (Selectable 250k/500k/1Mb baud rate)
- USB: (1) USB-C 2.0B full speed host
- RS485: (1) HALF DUPLEX
- Inputs: (2) Analog (0-5V, 4-20ma, Resistive) (1) Freq In (30Hz – 10KHz)
- Outputs: (2) Digital Low-side open drain 500mA
- Real Time Clock: Yes
-
ELECTRICAL/ENVIRONMENTAL
- Operating Voltage: 6 - 36 VDC, Reverse polarity protected
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Protection: IP67
- Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
- Shock: ±50G, 3-axis
-
PHYSICAL
- Mounting: 2” SAE HOLE with ring nut

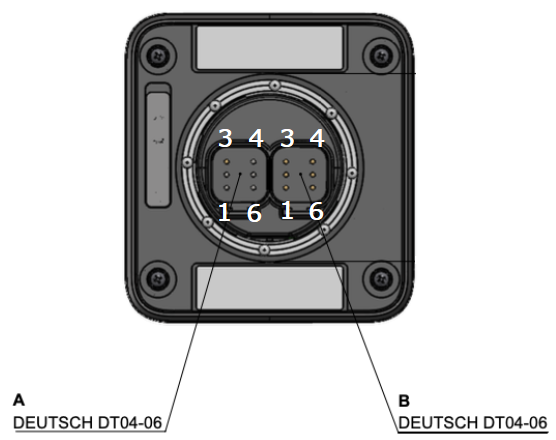

- Connectors: (2) 6-pin Deutsch DT06-6 Connectors
-
COMPLIANCE
- EMC/EMI: ISO 13766, ISO 14982
- CE: Yes
- REACH: Yes
- ROHS: Yes
