The S35 Color display Bootloader and Application software can easily be updated from a USB-C Flash memory device by simply placing the file on the memory device and plugging it into the displays USB-C port. Complete instructions are listed below.

Loading Application Software.

Step 1

Load the application .bin file on a USB Flash memory device and plug it into the displays USB port under the rubber grommet on the back of the display.

Standard Files can be found in the software dropdown menu here.

Step 2

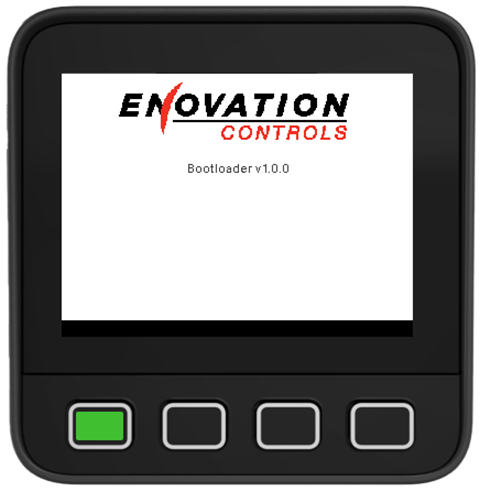

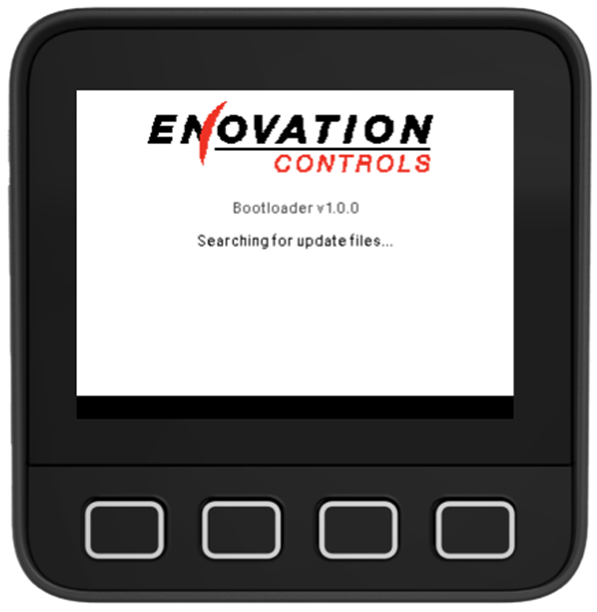

Press and hold the left button while applying power. Release the button and when the bootloader screen appears. The display will automatically scan for valid files on the USB drive.

Step 3

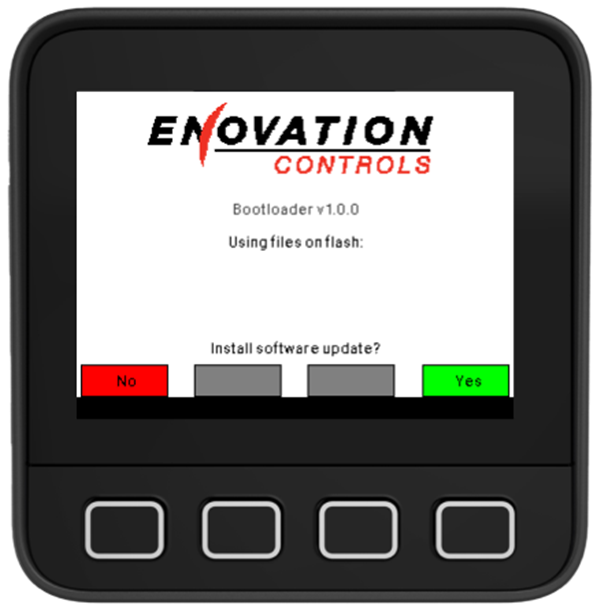

Select YES to start the application installation or select NO to go back to normal operation

Step 4

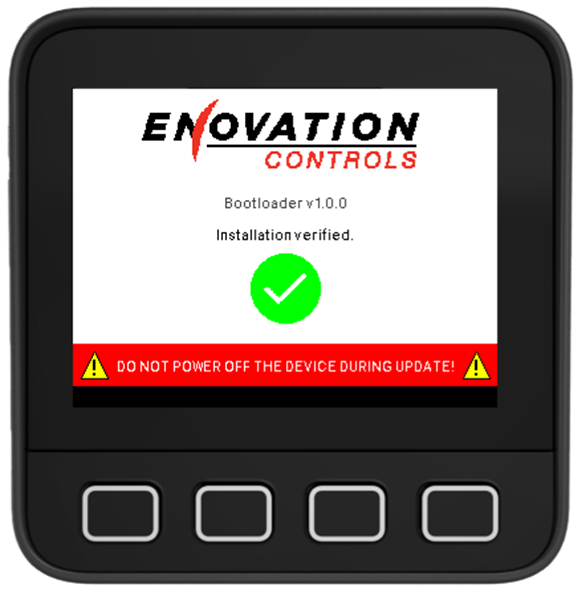

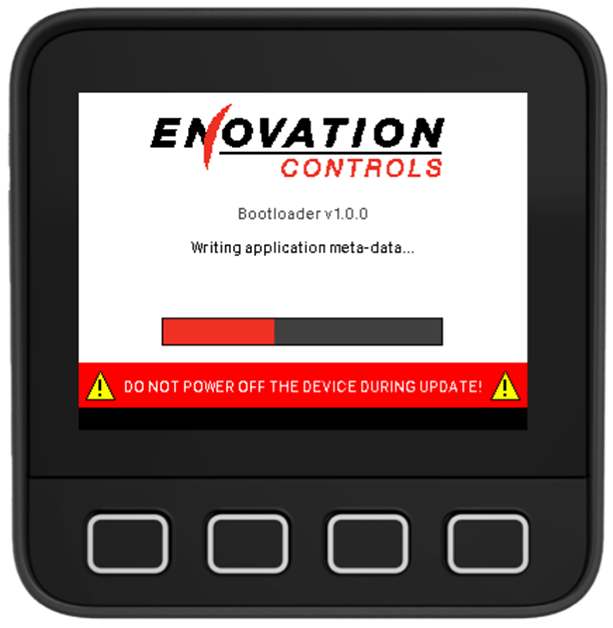

The display will update the application and report a green verified check mark once complete. It is important not to interrupt power during this operation.

Step 5

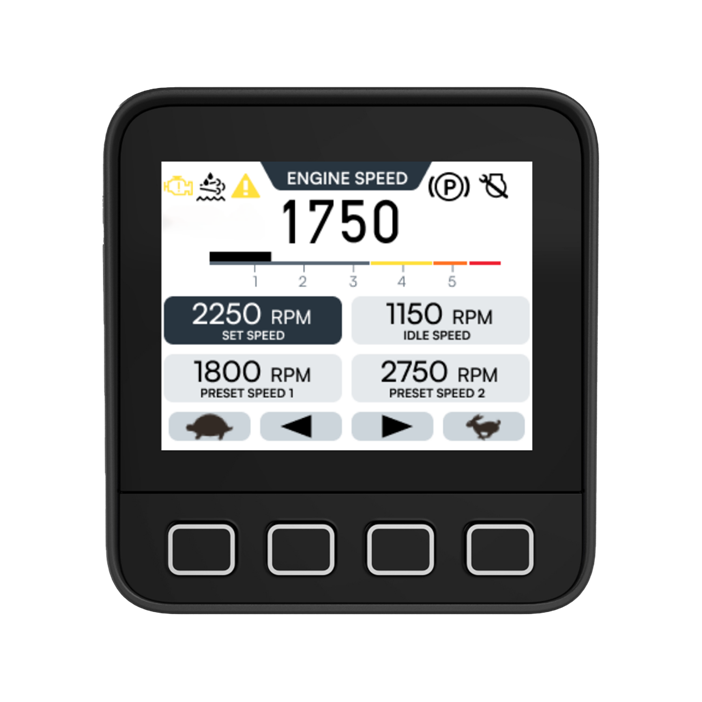

Display will reboot to the application when the installation is complete.
