S35 Configuration Tool

The S35 Configuration Tool is an easy to use application that allows the user to quickly setup all the menu options found in the display user interface. The settings can then be saved for future use and then loaded on the display. This is a great way to get the same menu setup when you are using many displays in a production environment or to keep a record of the settings on any displays sent out in the field.

The version of the Engine Application binary file loaded on the display must match the version of the configuration tool in order to be compatible. The correct version needed is embedded in the configuration tool for convenience.

Features:

• Create up to 12 customized J1939 parameters
• Drop up to 10 Data Trouble Codes (DTC)
• Configure the user interface defaults for language, brightness, units, and others.
• Select override source addresses for specific parameters
• Configure the gauge pages
• Hide pages not used
• Setup the Engine Throttling setpoints
• Configure the Analog Inputs
• Add a customized Logo
• Take a screen snapshot

Software Downloads:

See S35 Technical Specifications and Operations article for a list of software changes and new features.

• S35 Configuration Tool Download for Engine Application Version 2.30.67
• S35 Configuration Tool Download for Engine Application Version 2.27.59
• S35 Configuration Tool Download for Engine Application Version 2.25.52

Quick Start Guide:

• Install the Configuration Tool using the default prompts. The following icon will be placed on your desktop:

• Plug the display into the computer using a USB-C cable and apply power.
• Launch the Configuration Tool and navigate through the tabs and make the desired selections.

• The "System" tab requires entering the high level password 3482 and will allow you to setup custom passwords.
• When complete use the "Save As" menu button to save the file for future use.

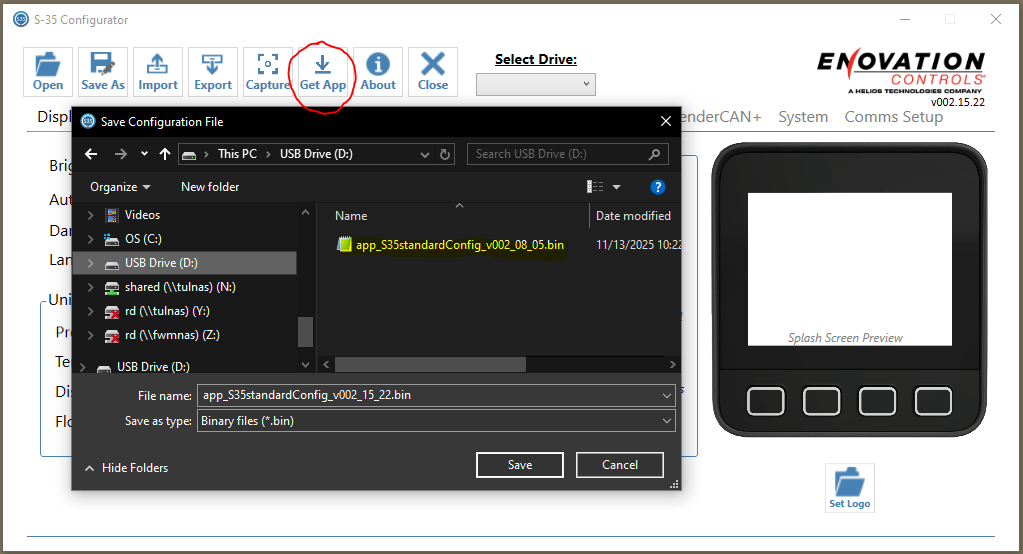

• IMPORTANT: Select the "Get App" menu button to get the compatible Engine Application Binary File then install it on the display following the standard installation process. If there is already an older app on the display file system, delete it first then save the newer app from the configuration tool directly to the display. Hold down the left button then power cycle the display to install the new app.

• Turn the display back on then select the drive that the USB connection created when plugging in the display.

• Select the "Export" menu button to load the settings file on the display. Enter the high level password 3482 or other at the prompt. Once installed disconnect the USB cable and power cycle the display.

Video Tutorial:

Full length video tutorial, use the video player index to jump to any specific topic.

Troubleshooting:

• Failed to Read Passcode Error: verify the app supplied with the configuration tool was installed on the display.
