5 - SSH Terminal Window Connection

Generic SSH Client Connection Values:

• Login Name - root

• IP Address - S50 & S70 = 192.168.7.1 or Openview, P100 = 192.168.5.1

Connecting Using the Windows SSH Client:

Open a Windows Command Prompt or PowerShell window and type:

ssh root@192.168.7.1

After accepting the fingerprint, a Linux root user command prompt will be displayed.

SSH Error

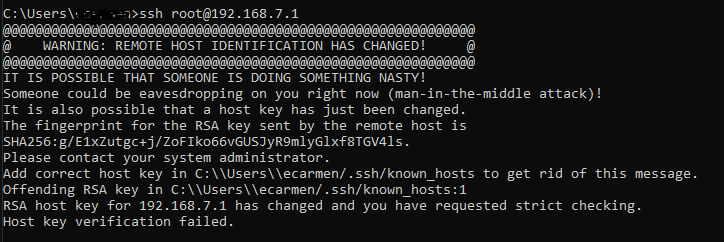

If the fingerprint is incorrect you will receive an error message similar to below.

Navigate to the .ssh folder located in C:\users\username\.ssh and delete the known_hosts file.

Navigating and Viewing the journal:

If needed, navigation to the currently installed application can be accomplished with the command:

cd /usr/local/Ahsoka/current

Messages generated by the currently installed application can be viewed with the command:

journalctl -u Ahsoka.Application

All logged system messages in the Linux journal can be viewed with the command:

journalctl

Stopping the Application and Booting to the Loader/Installer

From the command line, the application can be stopped using the systemctl stop command. This will automatically startup the Installer service.

systemctl stop Ahsoka.Application.service

To view the Ahsoka services that are running use the systemctl list command.

systemctl list-unit-files

More Information:

More information about the Windows SSH client can be found at:
https://learn.microsoft.com/en-us/windows/terminal/tutorials/ssh

For those unfamiliar with Linux, information about Linux Command Prompt and basic commands is here:
https://ubuntu.com/tutorials/command-line-for-beginners#4-creating-folders-and-files

And an overview of monitoring Linux processes is here:
https://discourse.ubuntu.com/t/viewing-and-monitoring-processes-in-linux/26024
