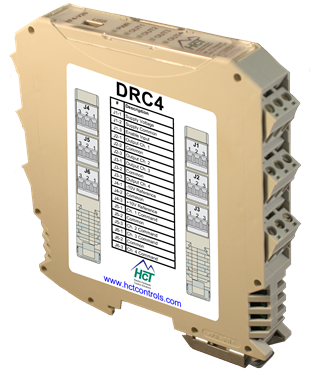

About the DRC Series
The DRC is an electronic control module for use with proportional solenoid valves in open loop systems. The module will provide current to the solenoids of the valve in response to various types of signals provided by the control system. Indicators on the front of the module provide an overview of the operating status. System configuration is accomplished through a convenient remote terminal. All settings are stored in permanent memory within the unit. The unit is housed in an attractive, compact enclosure
The DR Series offers versatility and ease of use in a narrow DIN-rail mounted housing. The front panel indicators and USB port provide for simple setup and monitoring. All terminal connections are removable for easy wiring. Up to 4 outputs make efficient use of valuable panel space. A wide range of input options are available for ultimate flexibility.
Looking for other DR Series products? The DRF Series have been archived. Contact your HCT sales representative for more information.
STANDARD DR SERIES FEATURES:
- Easily configured using the SAM software or our Hand Held Interface
- Front panel indicators for Power, Output Current and System Faults
- USB port for setup and monitoring
- Standard 35mm DIN rail mounting
- Removable terminals to simplify wiring and maintenance
- Control input options include +/-10V and 4-20mA
- Selectable dither frequency up to 1000 Hz
- Adjustable current limited output with short circuit protection
- Microprocessor controlled for consistent, reliable performance
DOWNLOADS:
APPLICATION INFORMATION:
- Easily configured using the SAM software or our Hand Held Interface
- Front panel indicators for Power, Output Current and System Faults
- USB port for setup and monitoring
- Standard 35mm DIN rail mounting
- Removable terminals to simplify wiring and maintenance
- Control input options include +/-10V and 4-20mA
- Adjustable current limited output with short circuit protection
- Selectable dither frequency up to 1000 Hz
- Reference voltage outputs for potentiometer/joystick controls
- Multiple modes for single and dual coil applications
- Independently adjustable min and max settings for input and output
- Adjustable ramp up and ramp down rates
- Microprocessor controlled for consistent, reliable performance
OPERATING SPECIFICATIONS:
Item | DRC |
---|---|
Supply Voltage | 9 to 32VDC |
Supply Current | Isol + 50mA |
Output Current | "-06A" 600mA or "-12A" 1.2A or "-25A" 2.5A Maximum |
Solenoid Resistance | 2 Ohms Minimum |
Reference Voltages | -10V, +10V @ 20mA |
Dither Settings | 30, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 1000 Hz |
Analog Input Range | "DRC-Vxx" -10 to 10V, "DRC-Axx" 0 to 20mA |
Analog Input Impedance | "DRC-Vxx" 38 K Ohms, "DRC-Axx" 250 Ohm |
Operating Temperature Range | -20 to +70 Deg. C |
Enclosure | Polyamide |
Dimensions | Inch: 0.69 W x 4.50 H x 4.30 D mm: 17.5 W x 114.5 H x 109.4 D |
PART NUMBERS:
Description
|
DRCx
|
-Input
|
Output
|
---|---|---|---|
1 Output Channel |
(No Longer Available)
|
-
|
-
|
2 Output Channel |
(No Longer Available)
|
-
|
-
|
4 Output Channel |
4
|
-
|
-
|
Voltage Input -10V to +10V |
|
V
|
-
|
Current Input 0 to 20mA |
|
A
|
-
|
600mA Output |
|
|
06
|
1.2A Output |
|
|
12
|
2.5A Output |
|
|
25*
|
Example: DRC4-V06 is a 4 channel, voltage input, 600mA outputs.
* 2.5A output available only with -10 to +10V input.
