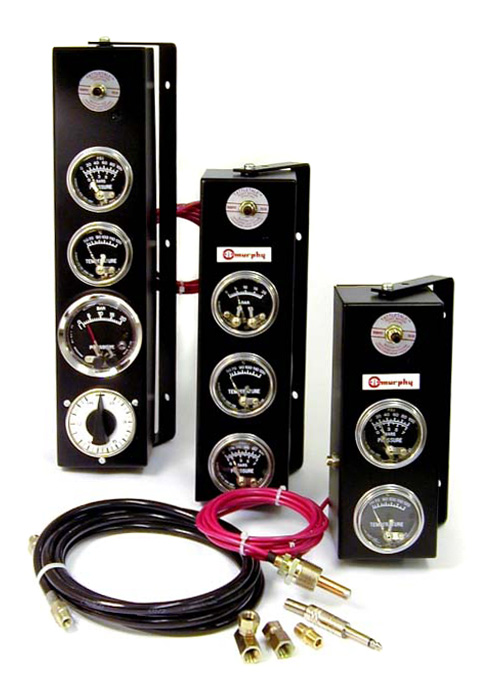

The WD100 and WD270 series panels are a rugged, dependable solution for engine or pump fault protection. Their compact size and ease of installation make these panels highly suited to the protection of mobile or stationary engine-driven applications such as tractors, PTO devices, earth moving equipment and pumps.
WD series panels use the Murphy Swichgage® for accurate and reliable indication and fault shutdown. Each panel features a rugged steel, black painted enclosure, fitted with a rotating bracket for ease of installation and use. Mobile equipment warning-before-shutdown versions (WD107/277) are also fitted with a Murphy Selectronic®TL7 flashing alarm light and SAH mini-siren, both of which
activate on fault, 30 seconds before an automatic shutdown.
Features:
- Universal mounting panel with rotating arm bracket
- Low oil pressure indication/shutdown (0 - 100psi / 0 – 7 bar)
- High engine temp indication/shutdown (50 – 120°C)
- Options for:
- pump high/low indicaton/shutdown (0 – 20 Bar)
- pump shutdown override timer
- high oil temperature indication/shutdown (60 – 140°C)
- warning and delayed shutdown for mobile equipment
- auxiliary shutdown input - Supplied complete with fittings and circuit dagram.
Feature Comparison:
|
stock
code |
panel name / description |
bulletin /
spec sheet |
circuit
diagram |
engine oil
pressure |
engine
coolant temp |
engine
oil temp |
pump
pressure |
charge
fail warning |
main
controller / magnetic switch |
enclosure type
|
extras/notes |
| B2644 | WD100 Diagnostic Centre, 12V |
20P
|
20T
|
-
|
-
|
NO
|
518APH
|
WD1
|
Jackplug for auxiliary shutdown | ||
| B2842 | WD270 Diagnostic Centre, 12V |
20P
|
20T
|
-
|
20PHL
|
NO
|
518APH
|
WD2
|
|||
| B6300 | WD277 Diagnostic Centre, 12V |
20P
|
20T
|
20T
|
-
|
NO
|
760A
|
WD2
|
Warning before shutdown alarms: SAH-A mini-siren and TL7 flashing lamp |
Literature:
For more information about this product, you can view the related literature here:
