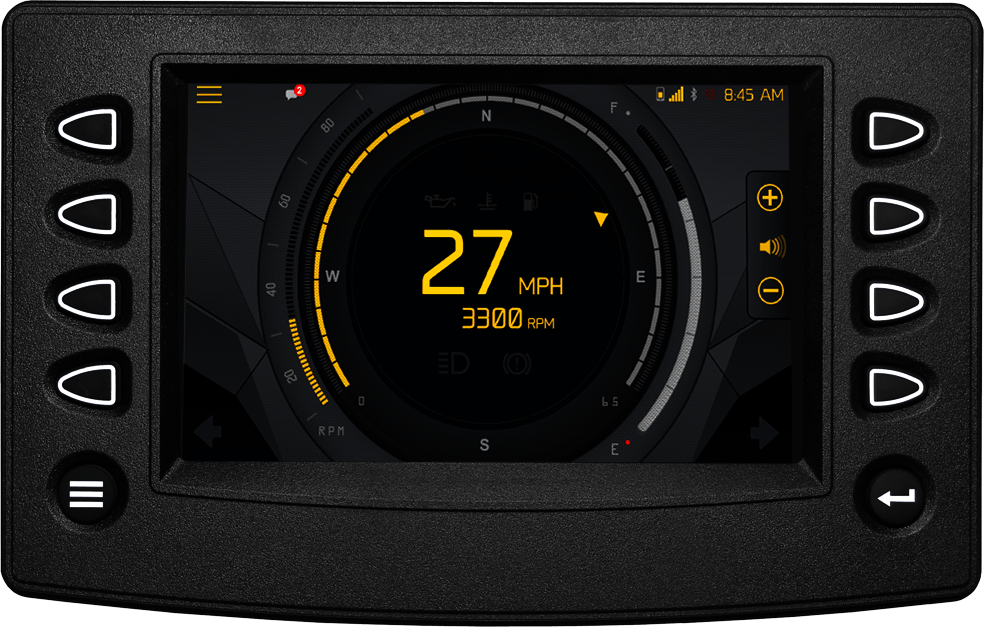

PowerView® 780

PowerVision Configuration Studio and Toolkit (Version 2.8+)

PowerVision Configuration Studio^® is a PC-based software program suite for configuring and programming PowerView^® and HelmView^® display units, PowerCore^® controllers and select MurphyLink^® panels.

Note: The full version of PowerVision Configuration Studio for Color and Monochrome Displays requires a valid Key ID to be used. If you do not have a Key ID, you may encounter limited features and saving options. To purchase a PowerVision Key ID, contact your Enovation Controls sales representative.

Downloads:

• PowerVision Configuration Studio 2.9 Downloads (Account Required)

• PowerVision Configuration Studio 2.8 Downloads (Account Required)
  Downloads of PowerVision Configuration Studio and Toolkit are only available on this site to users with registered accounts. To register for a free account, click here. Having trouble accessing your account? Contact Account Support.

• Solid Models
  • PV780 (STEP)
• Support .PDF
  • PV780 Top Level
  • PV780 Cut-Out
  • PV780 Harness (Power, CAN)
  • PV780 Harness (USB, Video)
  • AMPSEAL Connector Assembly
  • AMPSEAL Housing
  • AMPSEAL Socket
  • AMPSEAL PLUG

• CE Declaration of Conformity
  • PV780 CE Declaration of Conformity

No application information is available at this time.

No application information is available at this time.

No media or tutorials are available at this time.

• Connector kits, EMEA regions (ys6475)

• Interface
  • Display:
    • Bonded Print/Glare-free Glass 16-bit Color Transmissive TFT LCD
    • 7 in./ 178 mm, WVGA (800 X 480 pixels)
    • Orientation: Landscape or Portrait
    • Viewing Angle: ±65° horizontal, +55°/-65° vertical
    • Backlighting: LED, 1000 cd/m2 (40,000 hr. minimum)
    • Contrast Ratio: Typ. 400:1
    • Refresh Rate: 60 Hz
    • RTC: Optional, Real-time clock with Li-ion battery backup
• Operator controls:
  • Touch Panel: (optional) projected capacitive
  • Keypad: 10 tactile configurable soft keys with white LED backlight
• Power Supply:
  • Operating Voltage: 6–36 VDC, Reverse polarity protected
  • Power Consumption: N/A
• Inputs:
  • (3) Analog, configurable (resistive, 0–5V, 4-20mA, 10-bit resolution)
  • (5) Discrete digital, active-high
  • (1) Frequency In (2Hz - 10kHz) 5Vpk-pk min, 120Vpk-pk max
  • (3) Video, NTSC/PAL (Single channel viewable)
•  Outputs:
  • (1) Switched Low-side, 500 mA
  • (1) Frequency Output (2Hz – 3KHz, Vbat rms square wave)
• Communications:
  • (2) CAN 2.0B according to ISO-11898-2; J1939 and CANopen; proprietary messaging
  • (1) RS-485 serial (Modbus: Master/Slave)
  • (1) USB 2.0 Full Speed Host
• Connector(s):
  • (2) AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
• Computing:
  • Microprocessor: Freescale™ i.MX357, 32 bit, 532 MHz, ARM11 core
  • Memory:
    • 2 GB Flash memory
    • 128 MB SRAM
• Physical/Environmental:
• Enclosure Material: PC/ABS, ISO 3795 (SAE J369, FMVSS 302) rated
• Dimensions (W/ Std Bezel): 9.75 x 6.23 in. (248 x 158 mm) landscape
• Depth (W/ Std Bezel): 2.56 in. (65 mm)
• Mounting Options: Front mount, back mount or RAM mount
• IP rating: IP66 and IP67, front and back, for outdoor use
• Operating Temperature: -40° to +85°C (-40° to 185°F)
• Storage Temperature: -40° to +85°C (-40° to 185°F)
• Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
• Shock: ±50G, 3-axis
• EMC/EMI:
  • 2004/108/EC and 2006/95/EC directives
  • EN 61000-4-3 (radiated EMF immunity radiated)
  • EN 61000-4-4 (EFT immunity power and I/O lines)
  • EN 61000-4-5 (surges power lines)
  • EN 61000-4-6 (RF immunity)
  • EN 61000-4-8 (magnetic field immunity)
  • EN 60945 (ESD)
  • EN 60945 (conducted emissions)
  • HYBRID EN 60945 CISPR 11 CLASS B (radiated emissions)
• Electrical:
  • J1113-2, -4, -11, -13, -21, -26 and -41
• Shipping Weight: N/A
• Shipping Dimensions: N/A
