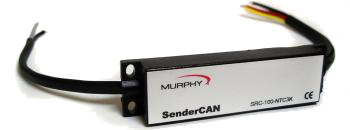

SenderCAN®

No drawings are available at this time.

No compliance documents or certificates are available at this time.

No application information is available at this time.

• UK Sales Bulletin (yi6495)

No media or tutorials are available at this time.

No accessory information is available at this time.

• Interface:
  • N/A
• Operator controls:
  • N/A
• Power Supply:
  • Operating Voltage: 7-35 VDC
  • Standby Current: 25 mA (typical)
• Inputs:
  • (4) Resistive (OEM/application specific)
• Outputs:
• (2) Low-side (–DC), 250mA Max (OEM/application specific)
• Communications:
  • (1) CAN: J1939
• Physical/Environmental:
• Enclosure Material: High impact ABS, epoxy filled
• Dimensions (WxHxD): (w x h x d): N/A
• Weight: 0.13 lb (.6 kg)
• IP rating: IP65 case (with DIP switch protective film intact), exposed lead ends
• Relative Humidity: N/A
• Operating Temperature: -40° to +85°C (-40° to 185°F)
• Storage Temperature: -40° to +85°C (-40° to 185°F)
• Vibration: N/A
• Shock: N/A
• EMI/EMC: 2004/108/EC
  • J1113-11 pulses 1c, 2a, 3a/b and 5a
  • EN 61000-4-2 ESD
  • EN 61000-4-3 Radiated disturbance
  • EN 61000-4-4 Fast transients
  • EN 61000-4-5 High energy transients
  • EN 61000-4-6 Conducted RF disturbance
  • CISPR 16-1-2, 4.3 Conducted Emissions
  • CISPR 16-2-3 Radiated Emissions
