- User's Guide - Model PV101-C v3.2 (00-02-0796)
- French (00-02-0796-FR)
- Italian (00-02-0796-IT)
- German (00-02-0796-DE)
- Spanish (00-02-0796-ES)
- Russian (00-02-0718-R)
- Chinese (00-02-0718-Ch)
- Japanese (00-02-0718-J)
- Czech (00-02-0718-C)
- Brazilian Portuguese version (00-02-0718-P)
- Tier 4 Overview (1110836)
- Parameter List (1110829)
- Wiring Diagrams (0710168)
- PVA Gage Wiring Harness Accessories (03020)
- PVM Gage Wiring Harness Accessories (0710179)
- Modbus Holding Registers (1110832)
- Error Messages List (1110830)
- Fuel Sender Calibration (1110833)
- Installation and Operations Manual - Model PV101-C Configuration Tool (00-02-0797)
- How to Configure PV101-C Interactive Training Guide
- Connector kits, EMEA regions (ys6475)
- PV101 3d Model (Step file)
- User's Guide - Model PV101-C (00-02-0718)
- Parameter List (1010583)
- Modbus Holding Registers (1010586)
- Error Messages List (1010584)
- Fuel Sender Calibration (1010672)
- Installation and Operations Manual (00-02-0721)
- Connector kits, EMEA regions (ys6475)
-
Sales Bulletin - Model PV101-A (1110823)
- User's Guide (00-02-0795)
- Troubleshooting guide (0710172)
- Supported J1939 Parameters (0710174)
- Wiring Diagrams (0710168)
- PVA Gage Wiring Harness Accessories (03020)
- PVM Gage Wiring Harness Accessories (0710179)
- Modbus Holding Registers (0710171)
- Error Messages List (0710170)
- Fuel Sender Calibration (1110833)
- PV101 3d Model (Step file)
PV101-A, V2.3 Modifications Insert* (00-02-0817)
*The Modifications Insert contains information about Version 2.3 changes to the PV101-A. If you are using a PV101-A that was shipped after December 16, 2011, please review the information in this document. Current PV101-A's are being shipped with the prior User's Guide along with this insert.
Installation/Operation Instructions - Model PV101-A-HAZ (00-02-0714)
- Troubleshooting guide (0710172)
- Supported J1939 Parameters (0710174)
- Wiring Diagrams (0710168)
- PVA Gage Wiring Harness Accessories (03020)
- PVM Gage Wiring Harness Accessories (0710179)
- Modbus Holding Registers (0710171)
- PowerView 101 Error Messages List (0710170)
All models Tier 3/Euro Stage III and earlier (PV101-A) and Tier 4/Euro Stage IV (PV101-C-T4) share the following features:
- Multiple language options − English, Spanish, German, Italian, French, Brazilian Portuguese, Chinese, Japanese, Czech and Russian.
- Sender Input − Select between backlight dimmer function or fuel level. Can be calibrated to use non-Murphy fuel senders.
- Service Reminders – Five service reminders allow users to set hours for Change Engine Oil, Air Filters, Hydraulic Oil, and Service Engine and Service Machine.
- Select Source Address – Select the exact address the PV101 will claim on the bus.
- The ability to select CAN bus Data Rate.
- Displays more than 50 standard SAE J1939 parameters.
- Shows helpful troubleshooting description of supported parameters.
Additional features for the Tier 4/Euro Stage IV (PV101-C-T4) models include:
- The menu offers Auto Regen, Request Regen and Inhibit Regen. Visible icons indicate:
- Active Regeneration
- Diesel Exhaust Fluid Level (DEF)
- Diesel Particulate Filter (DPF) Restricted
- Inhibit Regeneration or High Exhaust Temp
- After Treatment Fault
- OEM Menu – A password protected menu offers access to MODBUS Setup, Engine Speed Control ON/OFF, DEF Regen Menu ON/OFF, SCR Enable Disable and other critical menu items that require restricted access.
- TSC1 (Torque Speed Control) – Allows users to set run speed via CAN if supported by the engine manufacturer.

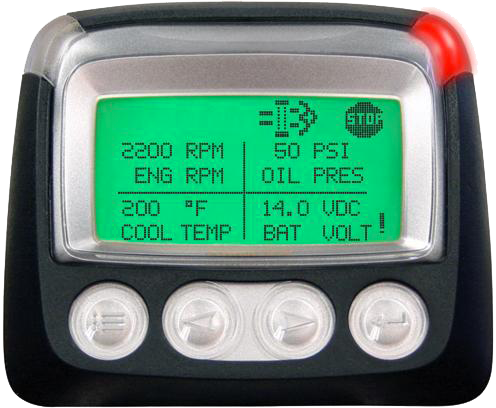

- Additional 4-Up Screen – Allows user to have two
- 4-Up screens to toggle between. Second user configurable screen is defaulted to show Tier 4 Parameters: DEF Level (Diesel Exhaust Fluid Level), DPF Active Regen Status, Exhaust Filter Outlet Temp and Exhaust Filter Inlet Temp.
- Shows SPN, FMI and OC for all faults.
- PV101-C Configuration Tool – PC tool allows users to create, view, edit and download configurations for the PV101-C.
Operating Voltage: 8 - 32 VDC
Reversed Polarity: Withstands reversed battery terminal polarity indefinitely within operating temperatures
Environmental
- Operating Temperature: -40° to +185° F (-40° to +85° C)
- Display Viewing Temperature: -20° to +185° F (-29° to +85° C)
- Storage Temperature: -40° to +185° F (-40° to +85° C)
- Environmental Sealing: IP68, ± 5 PSI (± 34kPa)
Power Supply Operating Current
- (@ 14VDC) 52 mA min.: 300 mA max
- (@ 32VDC) 1A max (with LCD heater)
CAN Bus: SAE J1939 compliant
Case: Polycarbonate/polyester
Maximum Panel Thickness: 3/8 inch (9.6 mm)
Auxiliary RS485 Communications Port
- User configurable as MODBUS MASTER or MODBUS RTU SLAVE
- MASTER ACTIVE (default) drives optional PVA or PVM gages
- SLAVE ACTIVE offers user-adjustable communication parameters
Resistive Input: user selectable as one of the following
- Backlighting Potentiometer: 1 K Ohm, 1/4 W
- Murphy Fuel Sender: 33 Ohm full, 240 Ohm empty set standard from the factory for use with Murphy fuel sender. Programmable for use with non-Murphy fuel senders.
Shipping Weights (all models): 1 Lb. (450 g.)
Shipping Dimensions (all models): 5 x 6 x 6 in. (127 x 152 x 152 mm)
Clamp: PBT
Connectors: 6-pin Deutsch DT Series
