PXT Series Pressure Transmitters

4-20 mA Output Signal Piezoresistive Pressure Transmitter Corrosion Resistant Construction High Stability

New Part Number Announcement: Starting in September of 2026, as part of the regular CSA recertification process, new part numbers and model numbers have been created to reflect the new certification. The product specifications and pressure ranges remain the same. See table below.

The PXT-E-K Series pressure transmitters are state-of-the-art instruments providing 4-20 mA output. Each Piezoresistive Pressure Transmitter contains a transducer comprised of a piezoresistive silicon chip mounted on a glass-metal feed-through header welded into a stainless steel housing and filled with silicone oil. The very thin laser-welded stainless steel isolation-diaphragm completes the front side. Media pressure is transferred from the stainless steel isolation-diaphragm via the oil inside the cell to the silicon measuring chip. This construction, combined with the advanced internal signal conditioning circuitry, results in a rugged instrument with extremely small temperature error and class-leading EMI/RFI resistance.

The enclosure and all wetted parts are made of 316L stainless steel to comply with NACE MR0175.

PXT-E-K Series Pressure Transmitters can be used in applications such as compressors, engines, process control, liquid level and pumps.

Specifications:

• Operating Pressure Range: See How to Order under the PXT-E-K Series Model Number Matrix.
• Operating Temperature: -40 to 180° F (-40 to 82° C)
• Compensated Temp Range: -20 to 160° F (-29 to 71° C)

Physical Characteristics:

• Process Connection: 1/4 NPT female with 7/8” Hex nut
• Electrical Connection (PXT-E-K-XXX): 1/2” NPT male conduit connection with 60” long cable, vented
• Enclosure: NEMA 4/IP65 or better
• Body: 316L stainless steel. Complies with NACE MR0175
• Wetted Parts: 316L stainless steel
• Environmental Effect (Humidity): No effect for 0-95%, non-condensing
• Mounting: Transmitter can be installed in any axis. Transmitter position has a negligible effect on performance as long as it is perpendicular to the flow being monitored.
• Shock Resistance: 1000g per IEC 60068-2-6 (Mechanical Shock)
• Vibration Resistance: 20G per IEC 60068-2-6 (Vibration under resonance)
• Wiring Protection: Protected against reverse polarity and short circuit, 48 VDC Maximum
• Supply Voltage: 8 - 30 VDC (Typically 24 VDC)
• Transmitter Output: 4-20mA, two wire configurations with load characteristics
• Insulation: Greater than 10MΩ @ 300 VDC
• Electromagnetic Compatibility (EMC): Standards; EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61326-2-3:2006
• Voltage Surge/Spike Protection: Protection against a 600 volt spike per IEC 60-2

• Shipping Weight: 6.5 ounces



Applicable Standards:

• NACE MR0175
• Compliant with the requirements
• CSA (c/us):
• Class I / II / III, Div 1, Groups A-F T4
• Class I / II / III, Div 2, Groups A-D,F,G T4
• ATEX:
• IBExU 10 ATEX 1124 X
• II 1G Ex ia IIC T6-T4
• II 3G Ex nA IIC T6

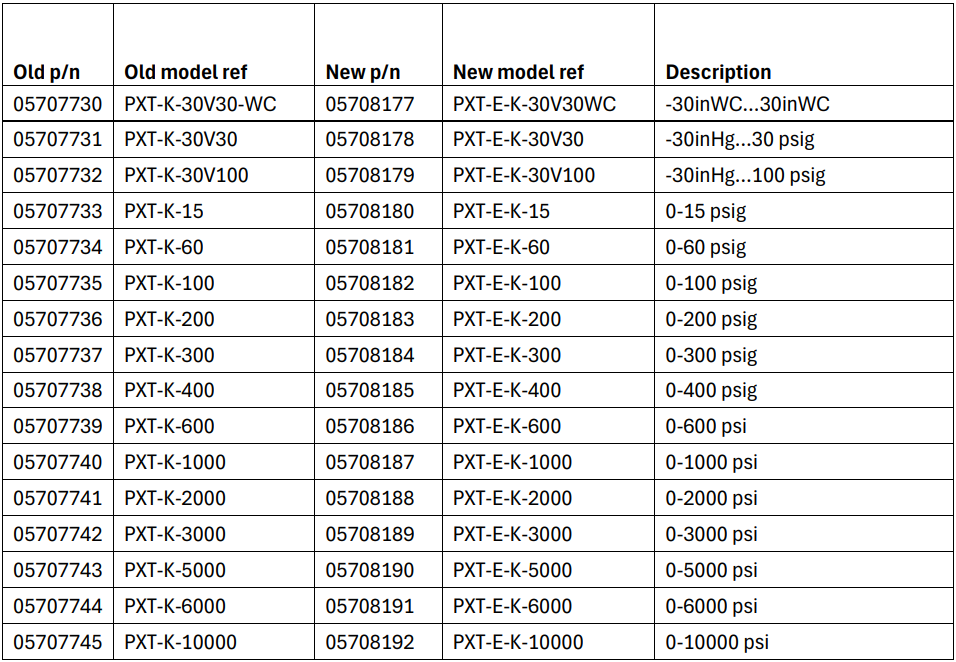

New Part Number Cross Reference (September 2026):



Literature Downloads:

• Sales Bulletin (1211009)
• PXT-K Read First Insert (00-02-0907)
• Installation Instructions (00-02-0840)
• PXT Series Cross Reference Chart
