PDM's connected to a Enovation Controls color display can be updated through the display by loading updater software off of a USB Flash drive plugged into the display USB port.

This software installs the same way you would normally update the display and will automatically run once its installed.

Once installed it will automatically scan each CAN bus for any connected PDM's then update them with built in PDM firmware revision 114.  No other files are required.

There may be more than one PDM on the CAN bus, the utility software will try and connect to any PDM whose source address is 30, 31, 32, and 33. If there is a second CAN Port it will scan that bus and update those PDM's as well.

PDM part numbers supported are 58700012 and 58700013.

Prepare USB Flash Drive

• Use a USB 2.0 compatible drive.
• Any size between 1G to 32G will work.
• Format the drive as a FAT32 file system before downloading the utility software.
• Make sure there are no partitions on the drive or other files.
• Sandisk Cruzer drives are compatible.



Download Updater Software by Display Family

Download the appropriate utility straight to your USB Flash drive, no other files are required. These files install the same way you would normally perform a display update. For convenience you can download all the files needed on the same Flash drive and just select the correct one from the bootloader/menu when installing on the display.

• PV700, HV/PV series 780B, 1100, & 1200
  • For displays with configuration versions 4.x and lower(pv1)
  • For displays with configuration versions 5.x and higher(pv2)
• PV500
  • For displays with configuration versions 4.x and lower(pv1)
  • For displays with configuration versions 5.x and higher(pv2)
• PV1280B
  • For displays with configuration versions 4.x and lower(pv1)
  • For displays with configuration versions 5.x and higher(pv2)
• Prisoner U120, U150

  • For displays configuration versions 5.x and higher(pv2)
• PV450, PV485
  • For displays with any configuration version
• PV780, HV700
  • For displays with any configuration version





Loading the PDM Update Utility

Option 1 - Using Displays Menu for Software Updates

• Displays that have a menu option to update software should use this method.
• Plug USB Flash drive into displays USB Port.
• Navigate to the software update menu and select the file to install.
• Follow the menu prompts to start the installation.
• Several components will get installed then automatically launch the updater utility.



Option 2 - Software Updates Using Bootloader Mode

• If the displays menu system does not have an option to update software use this method.
• Plug USB Flash drive into displays USB Port.
• All Glass Displays - Place a magnet over the designated area on the back of the display then apply power. See reference pictures for location.
• Displays with Buttons - Press and hold any button except the bottom left or the far left button (PV485) then apply power.
• Select the file to install using the hard buttons or the touch buttons.
• Follow the prompts to start the installation.
• Several components will get installed then automatically launch the updater utility.
• See reference pictures below - All Glass Displays, Displays with Buttons



Running the PDM Update Utility

Once the PDM updater software is installed the display will automatically run the utility and start scanning the CAN bus for PDM's to update. No user input is required. The feedback for the  PV450/PV485/PV780/HV700 is a little different so JUMP HERE for reference images.

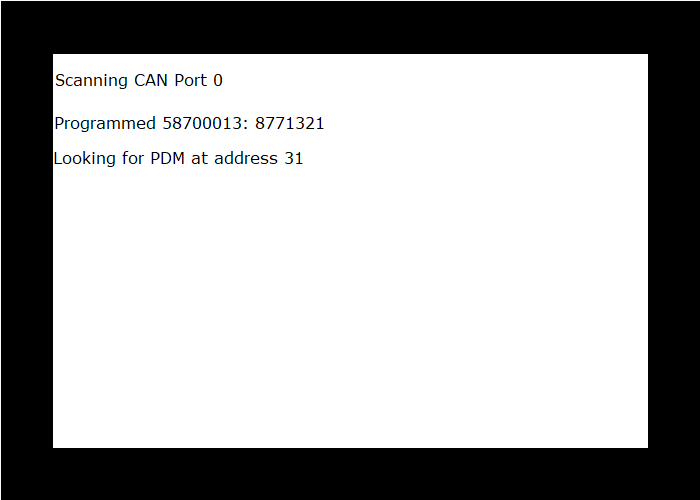

Each PDM that is updated will be indicated by a part number and its serial number.

When a PDM at a specific source address is not found it will be indicated by its address.



Verify all of the expected PDM's are found and have been updated while in progress.

Once complete, the Utility will automatically delete itself and return the display to normal  operation.

If any errors where noted power cycle the PDM's then repeat the process.



PDM Utility running on a PV450/PV485/PV780/HV700

Once the PDM updater software is installed the display will automatically run the utility and start scanning the CAN bus for PDM's to update. No user input is required.



When it finds a PDM at a specific source address it will begin updating the PDM firmware to version 114.



When it has finished updating the PDM it will display its part number and serial number.

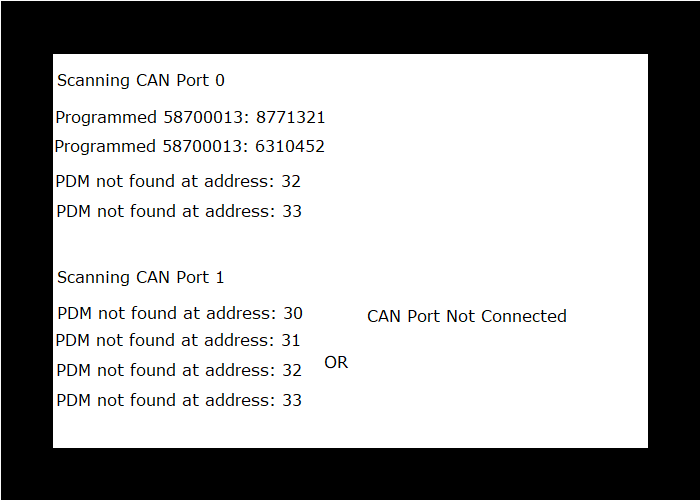

The utility will continue scanning all source addresses on CAN Port 0 then scan Port 1. If there is nothing attached on the CAN Port the following message is displayed.



Once all CAN ports are scanned the utility will automatically delete itself and restart the main display software.









Reference Information

Bootloader Magnet Location

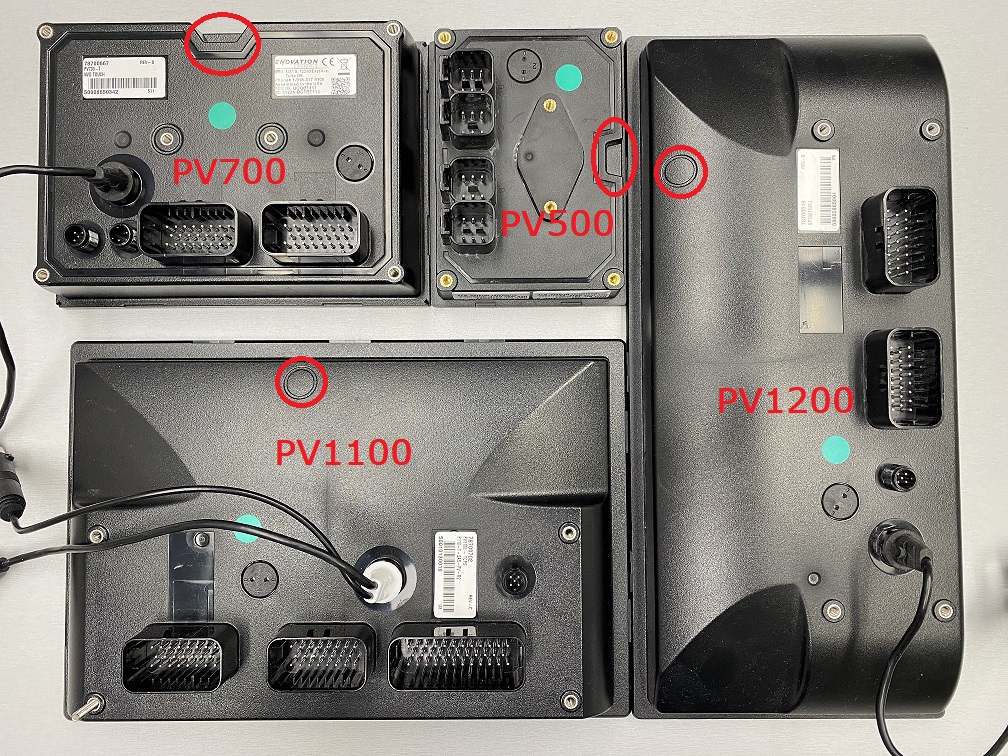

Place a strong magnet over the location circled in red then apply power to force display into Bootloader mode. (return to instructions)



File Installation from the Bootloader - Glass Displays

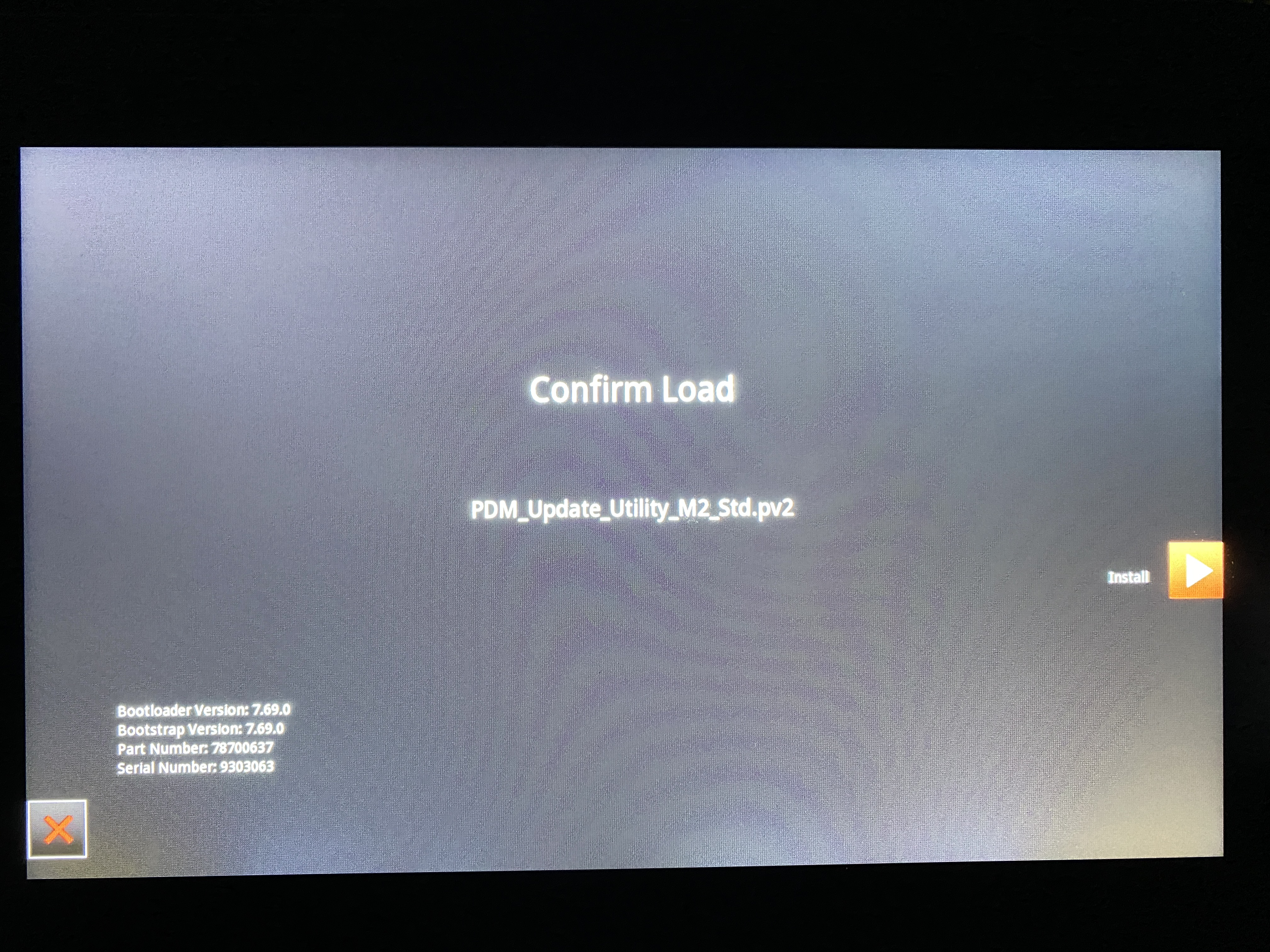

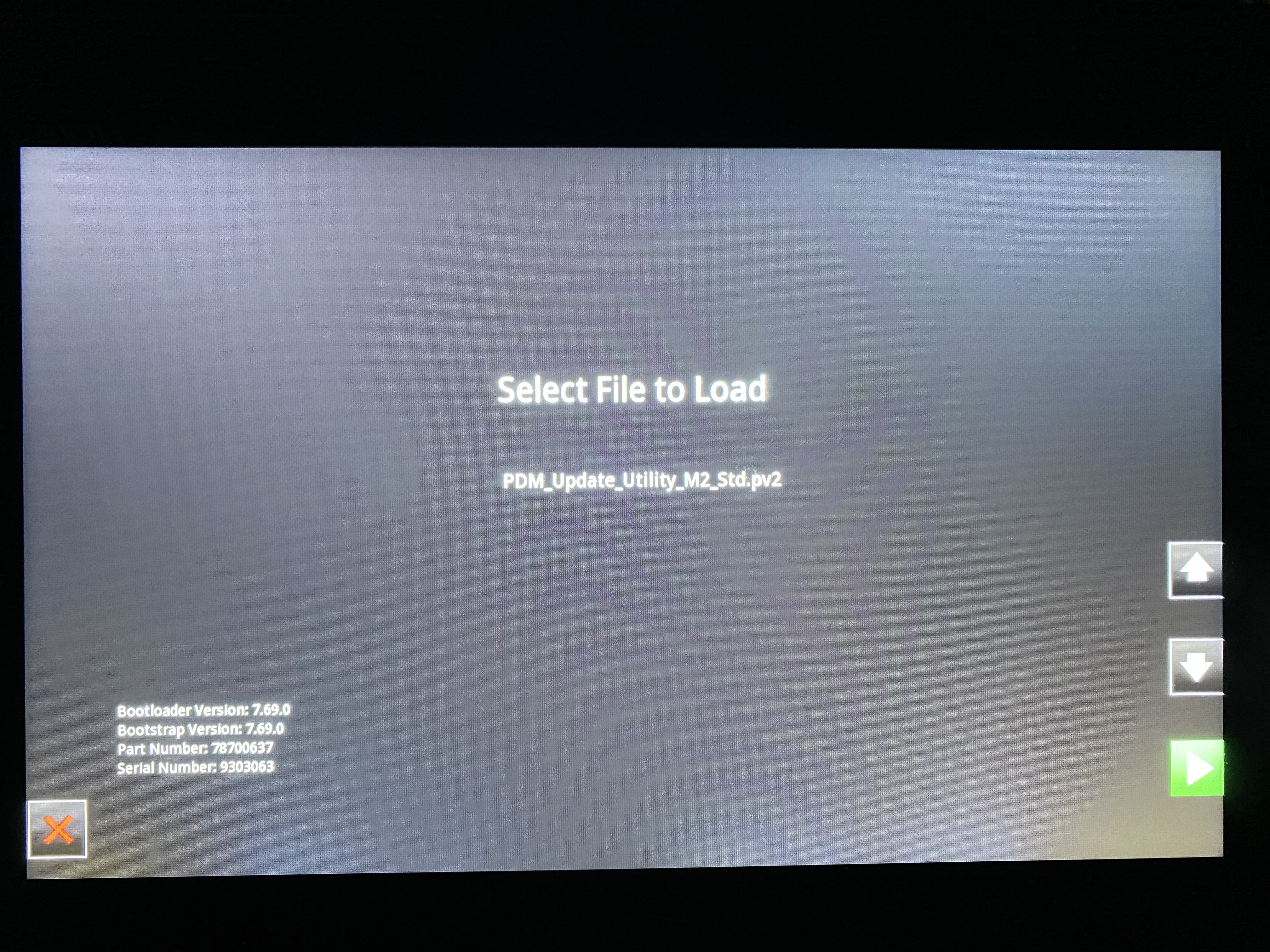

Select green arrow to select the file.



Select the red arrow to start the installation

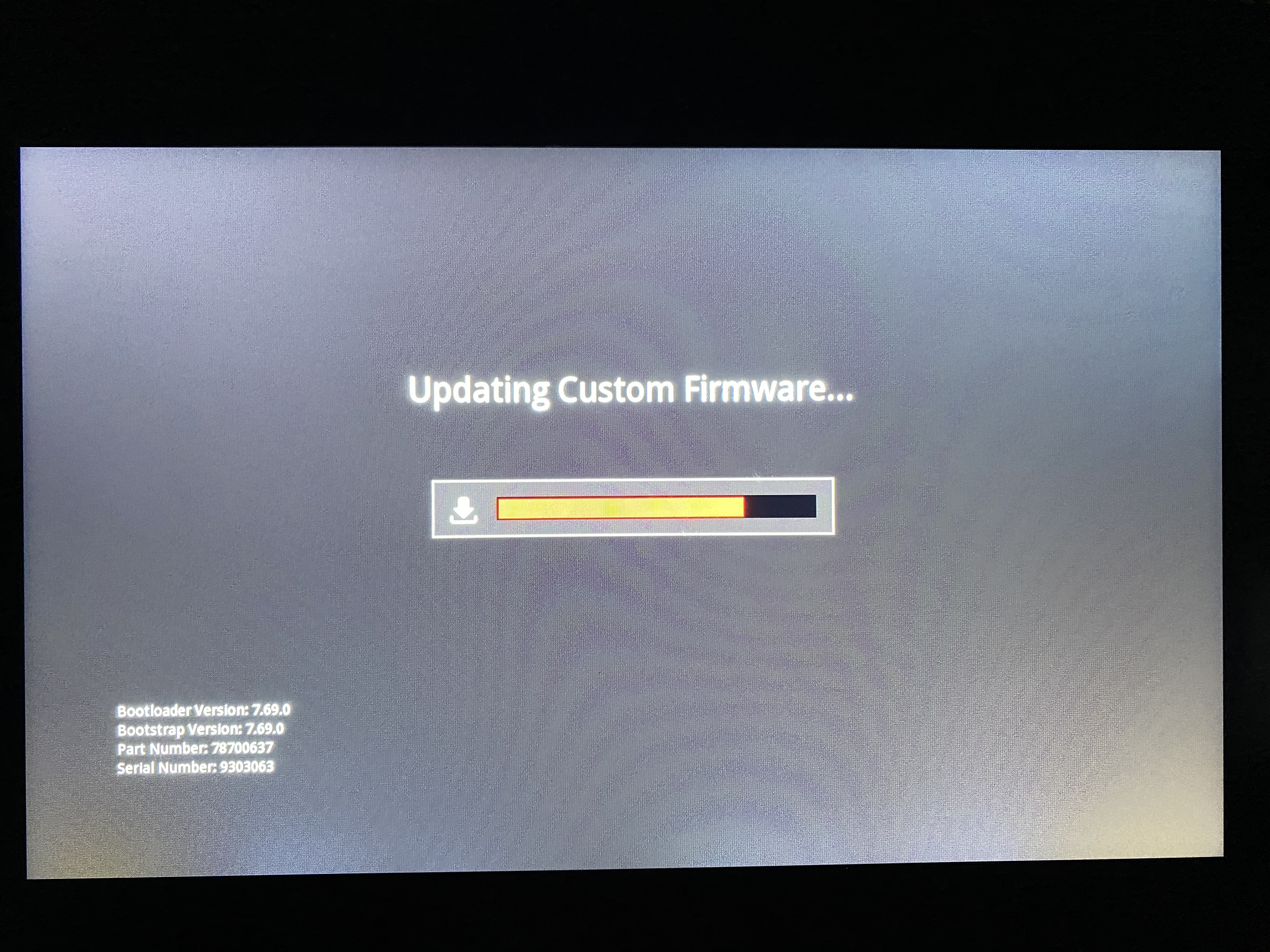

Various components will get installed quickly.



PDM Update Utility will automatically launch once installation is complete. (return to instructions)



File Installation from the Bootloader - Displays with Buttons

Use the Up/Down arrow buttons to navigate to the desired file then press the right arrow button to select the file.



Once the file is selected press the right arrow button again to start the installation process. The install file is very small so the progress bar will only flash on the screen for a second then immediately launch the updater utility. (return to instructions)
