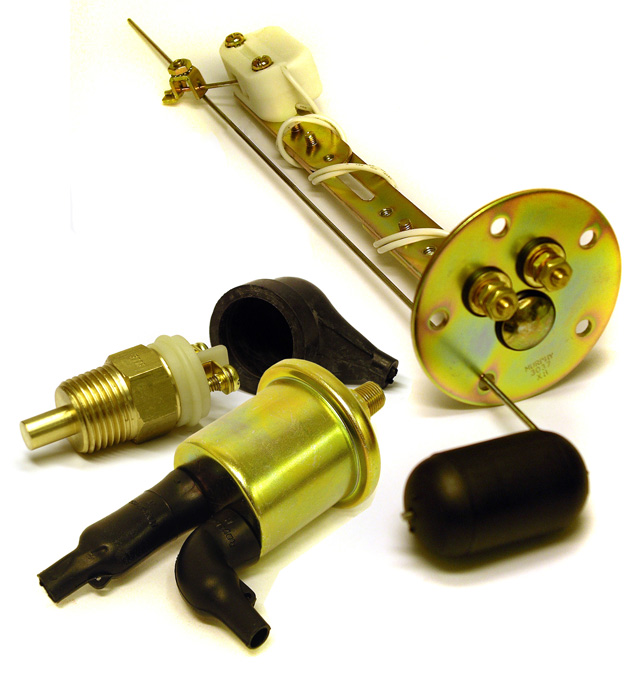

Originally designed for use with EG(S) electric gauges, ES series resistive measurement senders can also be used with several displays, controllers & I/O modules.
Standard models:
| 1-wire (ground/chassis return) |
2-wire (insulated return) |
2-wire (insulated return, driving 2 x EG(S) gauges) |
|
| Pressure | ESP | ES2P | ESDP |
| Temperature | EST | ES2T | ESDT |
| Fuel Level | ESF | ES2F | ESDF |
Specifications
Fuel Senders
- Tank Cutout Hole: Ø 1.750 in. (44 mm)
-
Materials:
- Float: Foamed Buna N
- Float Arm: Stainless Steel
- Resistor Housing: Glass Filled Polyacetal
- Flange & Shaft: Steel, Zinc-Plated
- Gaskets: Buna N, 70 Durometer (48% Acrylonitrile)
- Hardware: Brass & Phosphor Bronze
- Mounting Hardware: Zinc-Plated Steel
-
Resistance Range:
- ESF and ES2F Model: 240 Ohms to 33 Ohms
- ESDF Model: 120 ohms to 17 ohms
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Storage Temperature: -76° to 185°F (-60° to 85°C)
Application Note: We recommend using the Murphy Fuel Level Senders only in Diesel Fuel applications.
Temperature Senders
- Housing Material: Brass
- Temperature Range: 100º-250ºF (40º-120ºC) or 140º-300ºF (60º-150ºC)
Literature:
- Fuel Sender Bulletin (1411577)
- Pressure Sender Bulletin (1411607)
- Temperature Sender Bulletin (1411608)
- EG Series Fuel Sender Float Arm and Shaft Adjustment Table (EGF-96058N / 00-02-0764)
- Installation Instructions – Off-Equipment Mounting Kit (EGPK-95083N / 00-02-0212)
- Installation Note, fuel level sender sealing gasket changes, Nov. 2013 (yi6487)
- Application Note: ES series resistive sender tables/tolerances (yi6458)
