I have a config for a PV780 display and am transferring it to a new PV1100. Most of it is across and working fine but I'm having an issue with the clock.
The config has an analogue clock which uses the real time clock for its data. The analogue clock is working fine but I can't set it. Every time the display is turned on it starts from 12am. I have moved across the old user settings page which is where you set the real time clock on the old config. I simply moved all the graphics to the screen centre and then went through all the pages and moved each key designation on to a new touch widget designation.

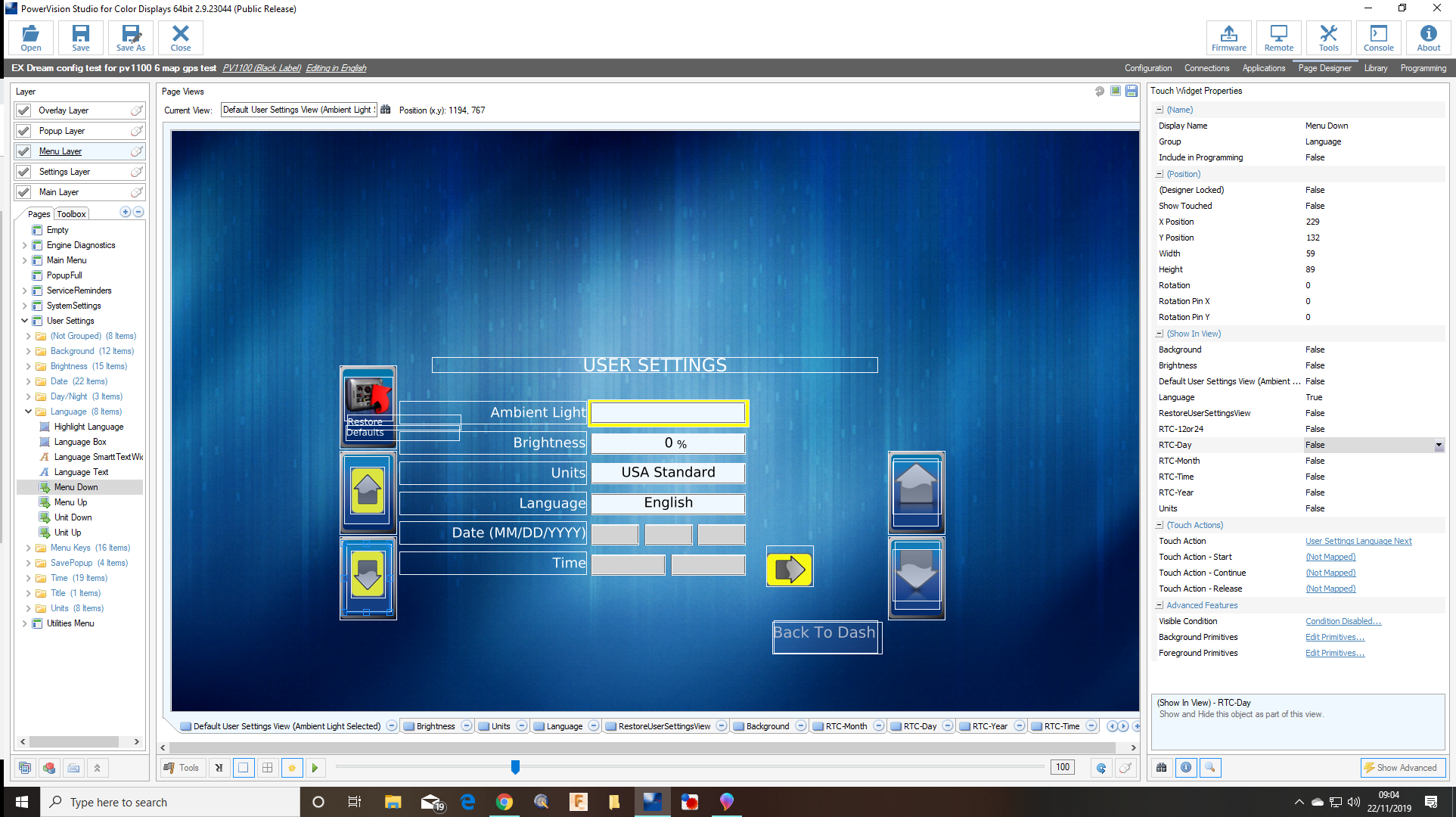

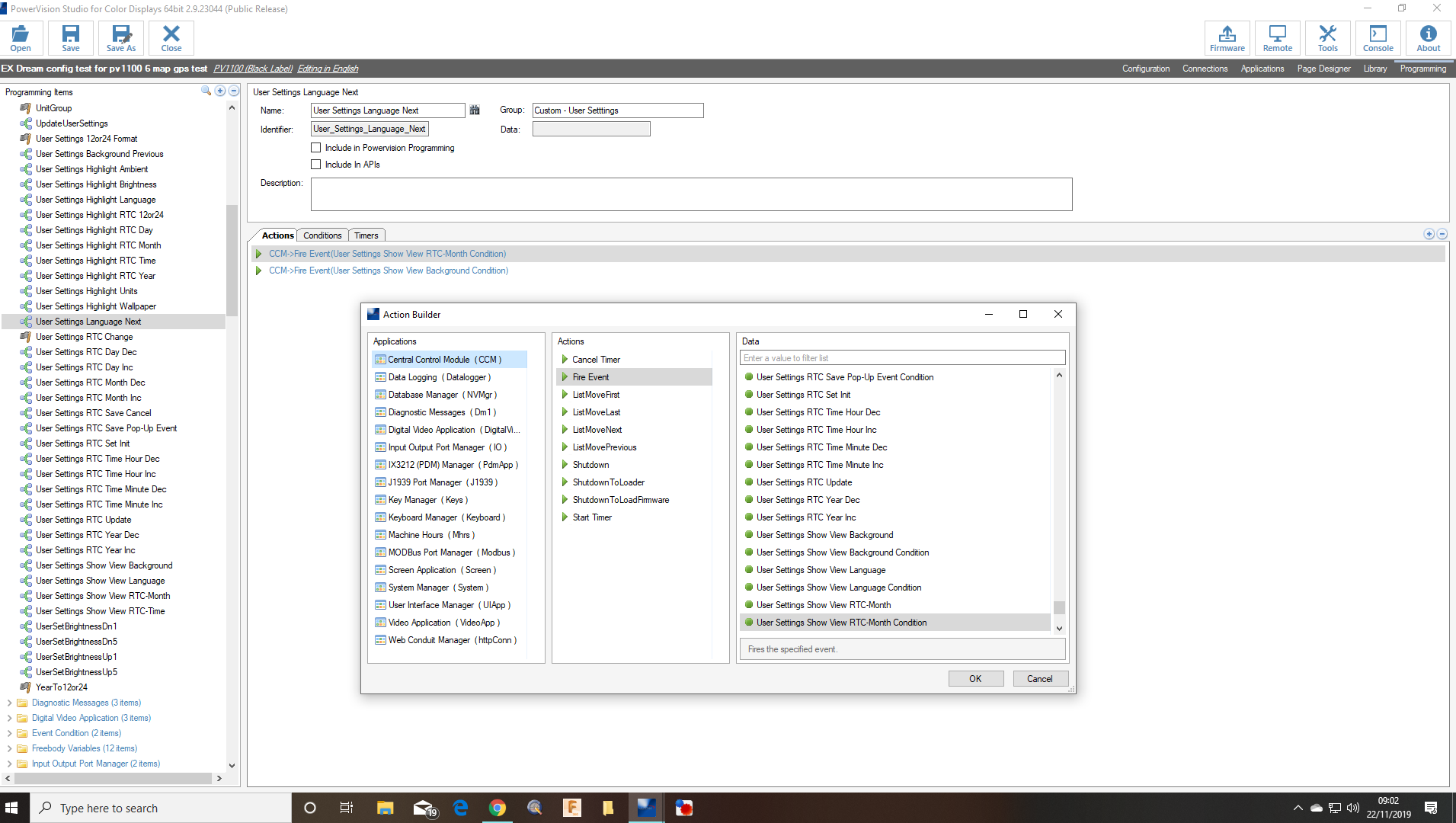

I think the issue has something to do with the navigation on to the clock set page. The first screen shot shows the settings page. When you menu down from Language it should go to Date Month. It fires the event in the second screen shot 'user event language next' but that doesn't take you to the Date month, nothing happens in fact.
If I put 'go to view RTC Month' on the menu down I can then select the month, date, time etc and change them but when I save changes which fires 'user settings RTC update' and the display restarts but it restarts at 12am, the settings were not saved.
I have a feeling this is something to do with the RTC-Month Condition event not working or being used. What is the significance of the 'Condition' part of that CCM event?
Thanks for any help
