Example: Fully Featured S50/S70 Project

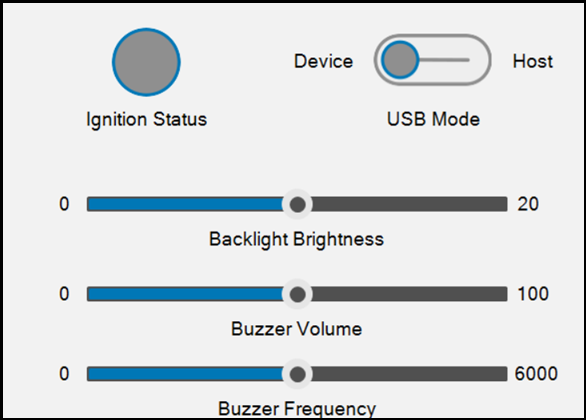

This example provides a good demonstration of the visualization and PRG logic required to implement most of the display related functions allowing you to focus on your application. In this example you will find the following features:

• I/O Functions - Analog Inputs, Digital Inputs, and Digital Outputs
• Display Backlight
• Buzzer On/Off and Frequency
• Ignition Input - Shutdown with Delay
• Accessing USB Flash Drives
• Updating Software from USB - Simple and Advanced Modes
• Wifi Access Point
• Wifi Client Mode
• IP Address of Device
• Part Number and Serial Number of Device
• Webvisu

Download the Project Archive
