Converting Object Animation (Rotation) from User Event to Script Equivalent

Follow

Ron Roth

• May 22, 2018 22:21

I have several items that I am rotating as part of a dynamic gauge in Powervision. It currently works using User Events. There are so many that I would like to convert them to Script equivalents. The objects are in a Container Widget and I am having issues gaining "access" to them.

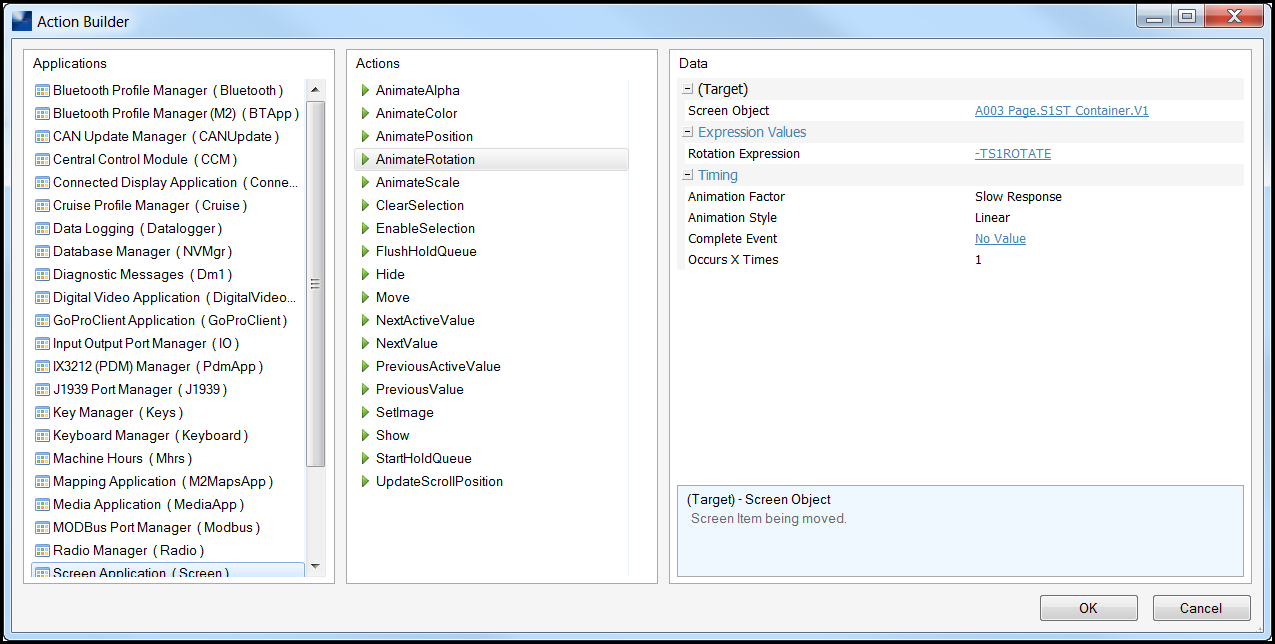

Example as a User Event.

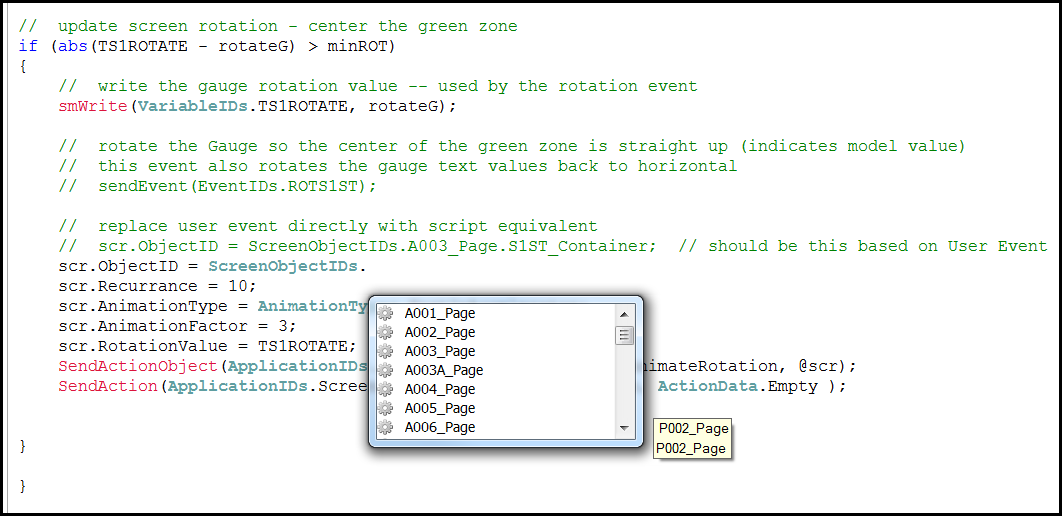

Here is my script (incomplete)

Just to let you know -- I also want access to individual elements in the Container which I can do with a User Event (but script??)

Thank you in advance for the assistance.

Ron Roth, Ph.D.

EControls, LLC

0

•

  Boyce S.

  • May 24, 2018 14:16

  Hello Ron,

  Are you sure the container screen object has Include in Programming True in this configuration?  It would have to be for the container screen object to be used in the Screen Action for the User Event to work also.  It works for me!



  Thanks,
  Boyce

  0
