Signed Freeform CAN data variables

Comments

6 comments

  • Avatar
    Boyce S.

    Thanks for the suggestion.  The issue of big endian signed integers is something that hasn't been a big request.  J1939 generally uses a parameter offset rather than signed data.  J1939 and NMEA2000 typically use a little endian data format.

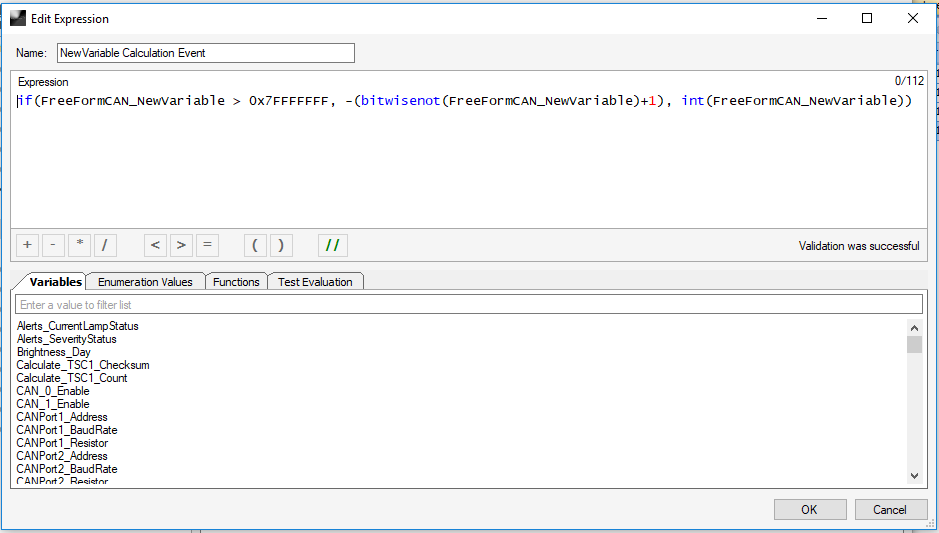

    A way to work around would be to receive the message with a Free Form Numeric Message and then use two's complement to convert the negative values.  For instance this can be done for 32 bit values in a calculation event:

    You probably have already something similar.  I put it in for other readers too.

    If somebody else would like to see this feature added please leave a comment so the higher powers will know you want it.

    1
    Comment actions Permalink
  • Avatar
    Adrian Barber

    Thanks for the info Boyce, much appreciated :)

    0
    Comment actions Permalink
  • Avatar
    Adrian Barber

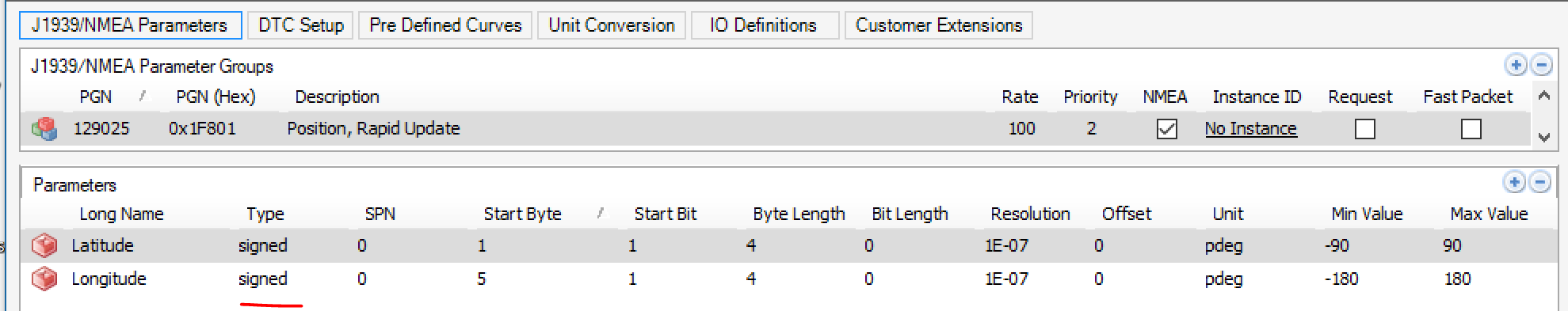

    I guess something very similar to the Library J1939/NMEA tab, where all the requird data can be specified as you would find in a dbc file, including signed data, would be really nice if the same functioanlity was ported to the freeform can area. :)

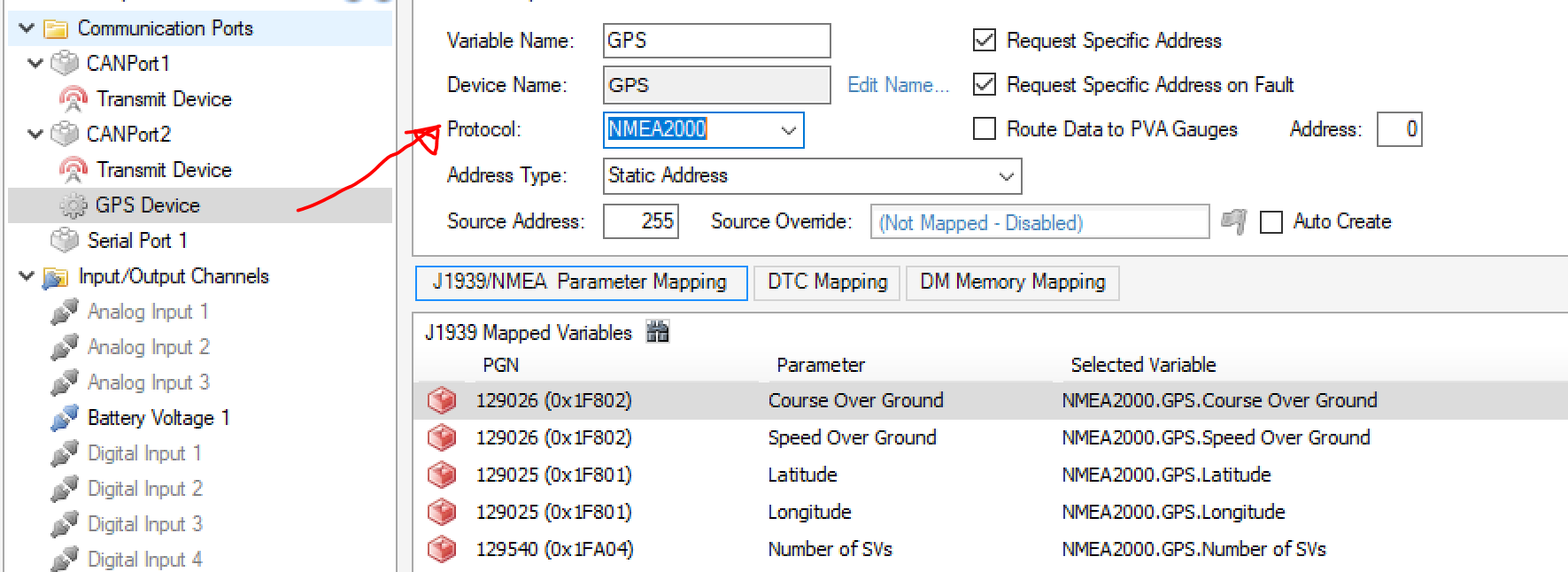

    Which got we wondering,  should all freeform CAN be specified in the Library tab like above, and then only the variable binding to the physical port and a psudo device name be done in the connections area where you would select the protocol type, freeform for example?



    Cheers, Dave.

    1
    Comment actions Permalink
  • Avatar
    Boyce S.

    Thanks for the suggestion.  I like that idea.

    1
    Comment actions Permalink
  • Avatar
    Thomas Abdallah

    I agree with Dave - the ability to specify CAN messages/signals as you would in a .dbc file would be hugely valuable for development in environments that do not use J1939 or NMEA2000.  Ideally a .dbc parser would be included so you could just select the messages you want to read and the associated signals are automatically generated.

    1
    Comment actions Permalink
  • Avatar
    Elohor Onecha
